    //Woodworking Machinery

    Wide Belt Sander

    Double-sided sanding machine for removing imperfections from top and bottom sides of wood workpieces
    • Working width20-1300mm
    • Max. transverse angle30°
    • Feeding motor power4kW
    • Brush motor power0.37kW

    The wide belt sander is a double-sided sanding system can efficiently remove surface irregularities or imperfections from top and bottom sides of the wood panels. It prepares the material for downstream processes such as painting, veneering, or lamination. With a rugged construction and advanced sanding system, the sanding machine ensures high surface quality and production consistency in large-scale wood processing operations.

    Request a Quote
    Specifications
    • Working width 20-1300mm
    • Working thickness 3-100mm
    • Working length (per timber) >580mm
    • Sanding belt size (L×W) 2200×1330mm
    • Max. transverse angle 30°
    • First sanding belt motor power 30kW
    • Second sanding belt motor power 20kW
    • Feeding motor power 4kW
    • Up and down motor power 0.37kW
    • Brush motor power 0.37kW
    • Feeding speed 5-25m/min
    Features
    • Heavy-duty frame
      Constructed from high-strength steel to withstand intense sanding pressure and prolonged high-speed operation. The rigid frame minimizes vibration and noise while ensuring long-term stability.
    • Advanced sanding system

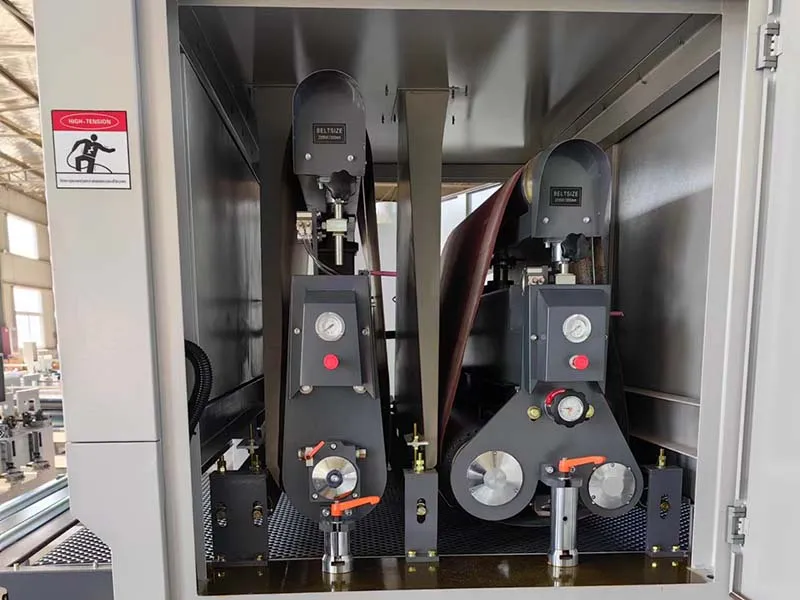

      Equipped with multiple sanding rollers and customizable abrasive belt configurations to perform coarse and fine sanding in a single pass.
    • High automation
      Features automatic feeding and discharge systems, automatic belt tensioning, and adjustable sanding pressure. These functions reduce manual intervention and enhance both efficiency and output consistency.
