    //Woodworking Machinery

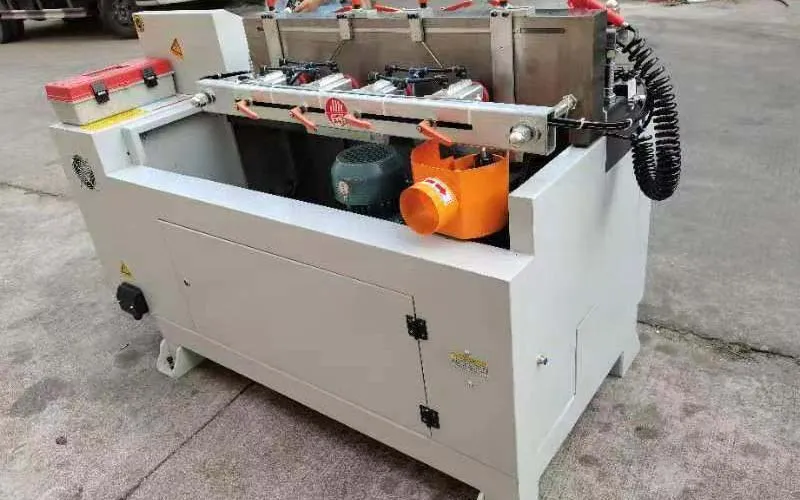

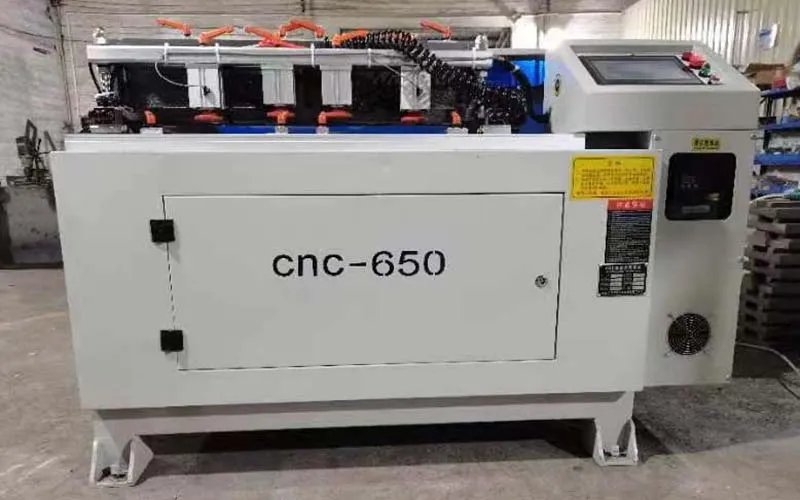

    CNC Dovetail Machine

    Automatic dovetailing machine for producing dovetail joints in drawers and furniture components
    • Spindle speed18000rpm
    • Spindle motor power3.5kW
    • Install power5.0kW
    • Tenon spacingAdjustable

    CNC dovetail machine is a specialized woodworking system designed for machining precise dovetail joints, commonly used in drawers, cabinets, and structural furniture components. Dovetail joints offer superior mechanical strength and resistance to pulling and twisting forces, making them more durable than standard mortise and tenon connections. This tenoning machine enables high-speed, repeatable processing with tight joint fit, supporting both small-batch customization and large-scale manufacturing.

    Request a Quote
    Features
    • Equipped with a high-precision servo system using ball screw drives and linear guide rails to ensure accurate and smooth motion during machining.
    • Features a dual-station design for simultaneous cutting of both the male (tail) and female (pin) joints, supporting safe, stable operation and optimized for high-volume production.
    • The intuitive digital input interface allows users to enter size parameters directly without the need for programming, making operation fast and user-friendly even for first-time operators.

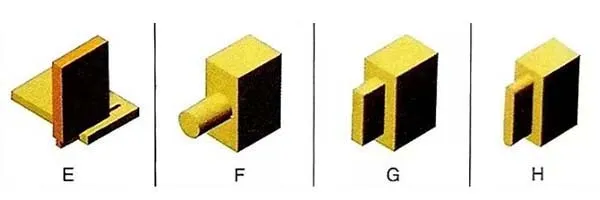

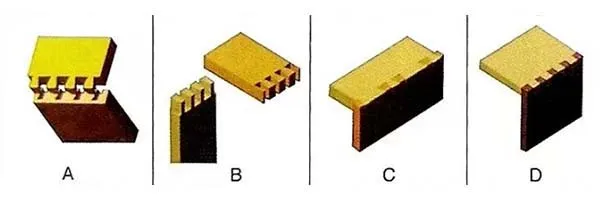

    Reference Diagram of Tenon Types
    • CNC Dovetail Machine
    • CNC Dovetail Machine
    Specifications
    Mode HF-650 HF-900
    Spindle speed 18000rpm 18000rpm
    Spindle motor power 3.5kW 3.5kW
    X-axis servo motor power 0.75kW 0.75kW
    Y-axis servo motor power 0.75kW 0.75kW
    Install power 5.0kW 5.0kW
    Working width 10-650mm 10-900mm
    Working thickness 5-25mm 5-25mm
    Tenon spacing Adjustable Adjustable
    Cutting cycle 3-30s 3-30s
    Tenon types A/B/C/D/E/F/G/H A/B/C/D/E/F/G/H
    Working air pressure 0.7MPa 0.7MPa
    Packing Size (L×W×H) 1890×860×1190mm 2140×860×1190mm
    Machine weight 663kg (with wooden box) 830kg
