    //Woodworking Machinery

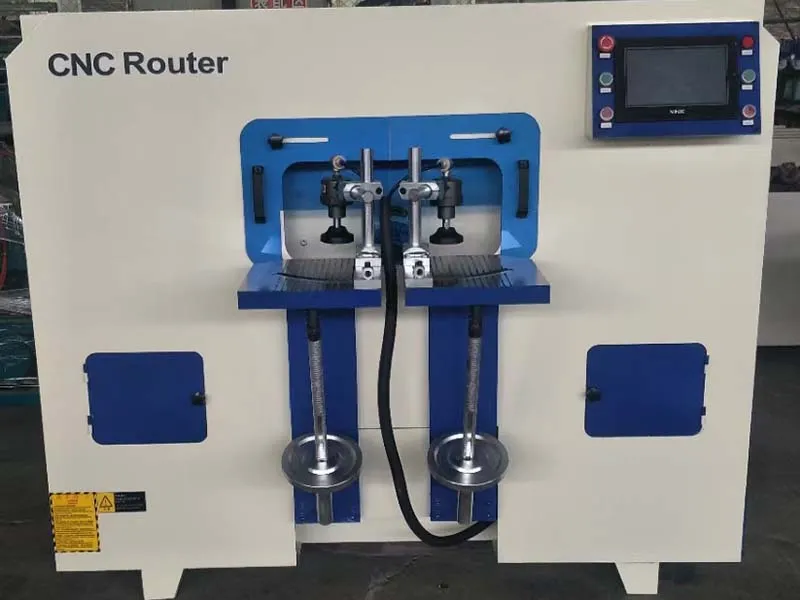

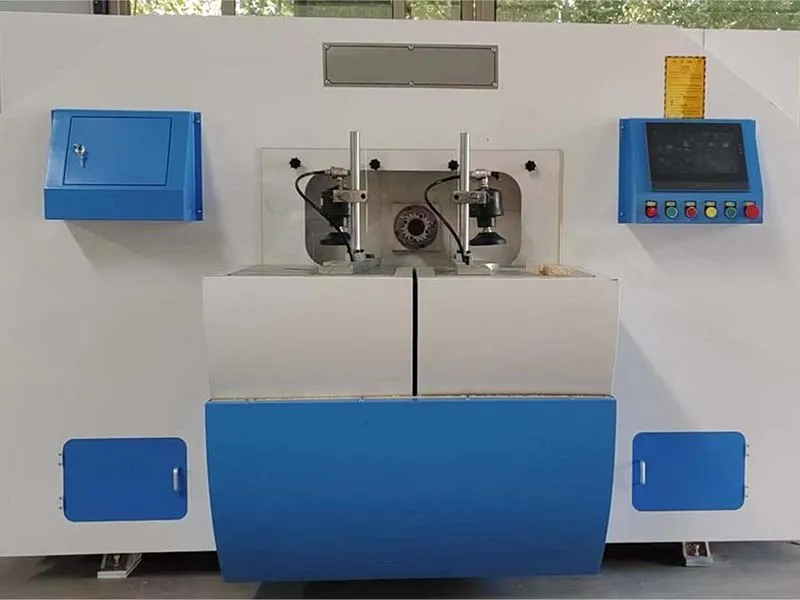

    Single-End Tenoner

    Wood tenoning machine for forming joint tenons to suit mortice holes
    • Max. vertical angle30°
    • Spindle speed8000r/min
    • Machine weight900kg
    • Machine dimensions (L×W×H)2300×1450×1600mm

    Semi-auto single-end tenoners are used for processing tenons on one end of a wood workpiece, making them ideal for small to medium-scale production. They operate at high speeds with adjustable settings, accommodating different design requirements with ease. These machines are capable of producing large quantities of tenons in a short period, enhancing processing efficiency and significantly reducing manual workload in joinery and frame production.

    Request a Quote
    Specifications
    • Max. diameter of round tenon100mm
    • Max. diameter of rectangular tenon140×80mm
    • Max. width of transverse tenon120mm
    • Max. width of vertical tenon120mm
    • Max. width of slant tenon120mm-30°
    • Max. vertical angle30°
    • Max. transverse angle45°
    • Air pressure0.4-0.9MPa
    • Dust suction inlet diameterØ98mm×2pcs
    • Spindle speed8000r/min
    • Total power7.0kW
    • Machine weight900kg
    • Machine dimensions (L×W×H) 2300×1450×1600mm
    Applications

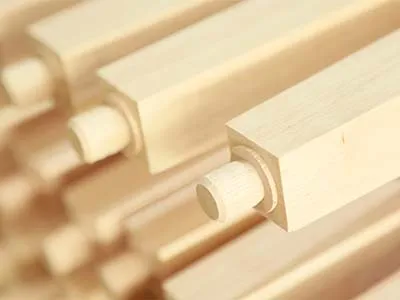

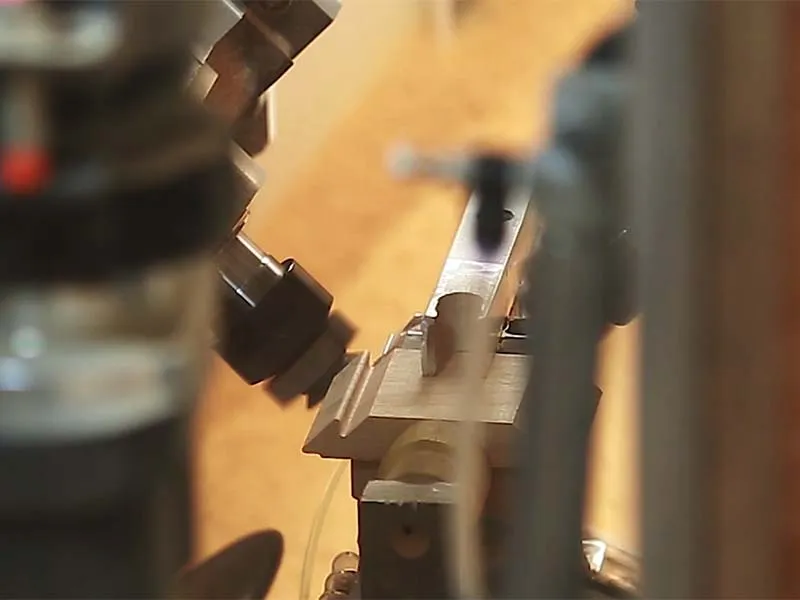

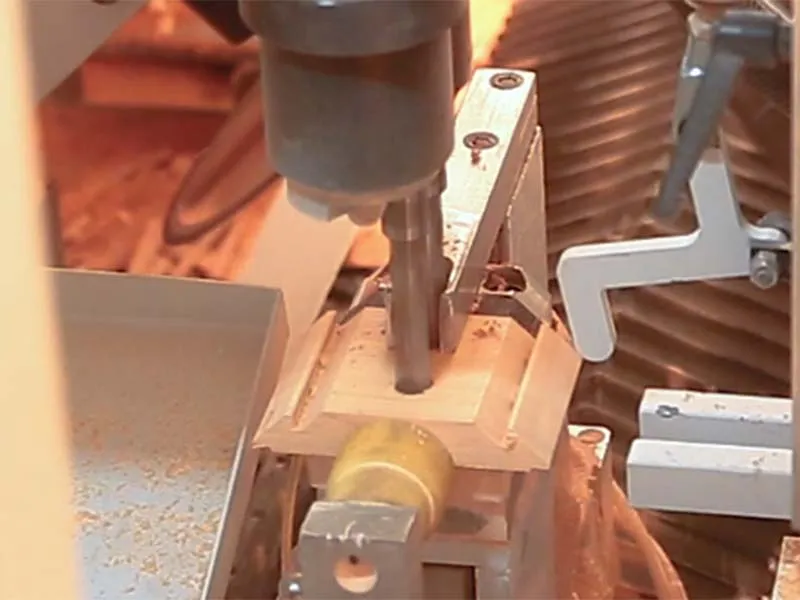

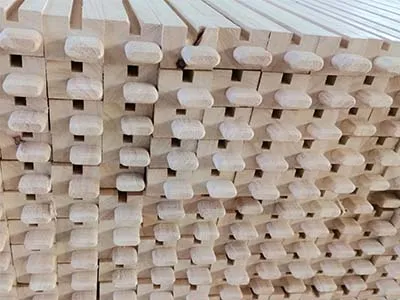

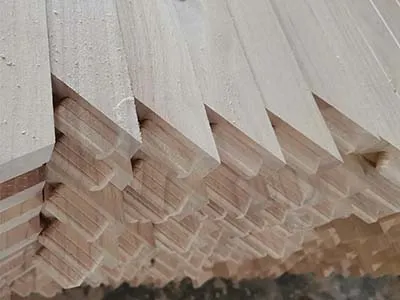

    Capable of cutting a wide range of tenon types, including round tenons, rectangular tenons, horizontal tenons, straight tenons, angled shoulder tenons, and sloped tenons. Suitable for furniture, door frame, and stair part production.

    • Single-End Tenoner
    • Single-End Tenoner
    • Single-End Tenoner
    • Single-End Tenoner
    Advantages
    • Working size is adjustable to fit different wood dimensions.
    • Equipped with two working tables for high-speed, alternating operation.
    • Tenon angles can be flexibly adjusted to match specific design requirements.
