//Woodworking Machinery
Longitudinal Veneer Splicer
Veneer processing machine for joining veneers with built-in automatic gluing system

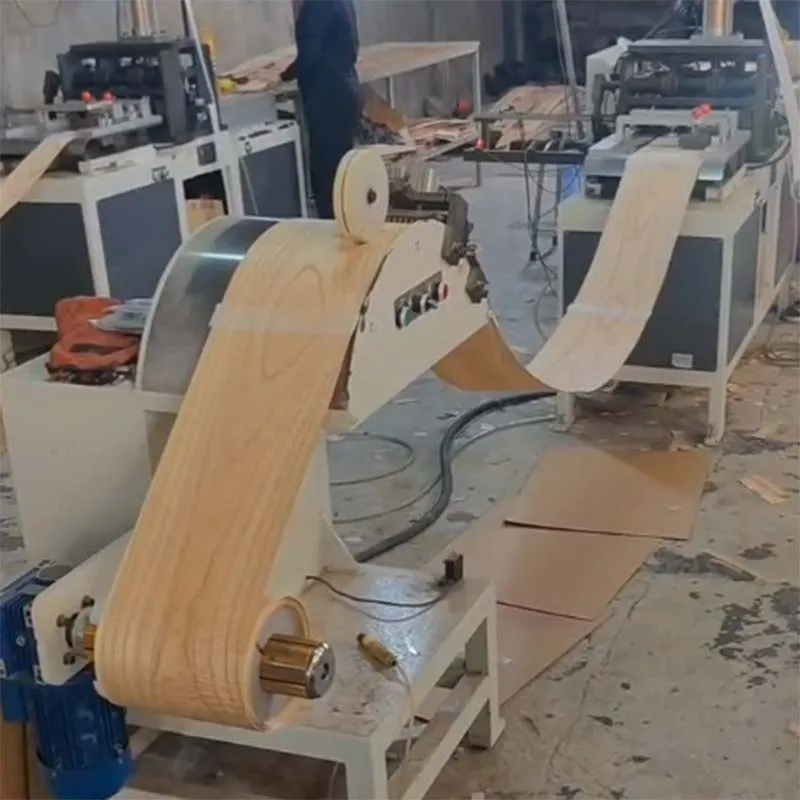

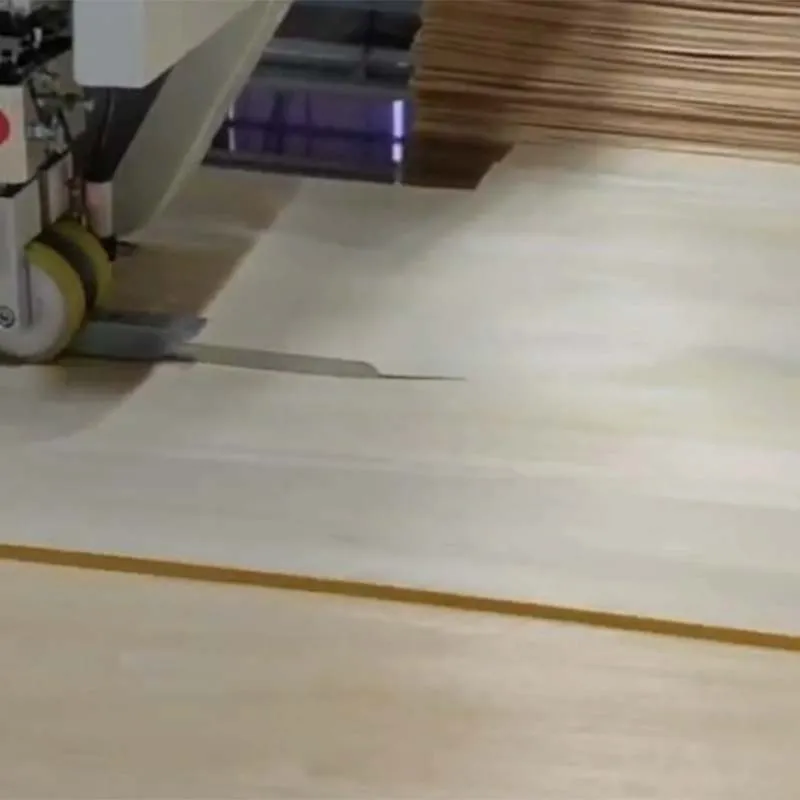

The longitudinal veneer splicer is designed for joining veneer sheets end-to-end to extend their length for panel or surface applications. It features a built-in automatic gluing system and precision alignment mechanism to accurately and firmly bond veneer edges with no visible joint line.
Specifications
- Veneer thickness 0.5-5.0mm
- Min. veneer length 350mm
- Min. veneer width 55mm
- Splicing speed 8-5m/min
- Motor power 10.8kW
- Air Pressure 5bar
- Air consumption 6L/min
- Working temperature 100-220°C
- Heating length 1500mm
- Machine dimensions (L×W×H) 2550×2100×1600mm
- Machine weight 1530kg
