CNC Double-End Milling and Drilling Machine
Automatic CNC machine for wood door frame production

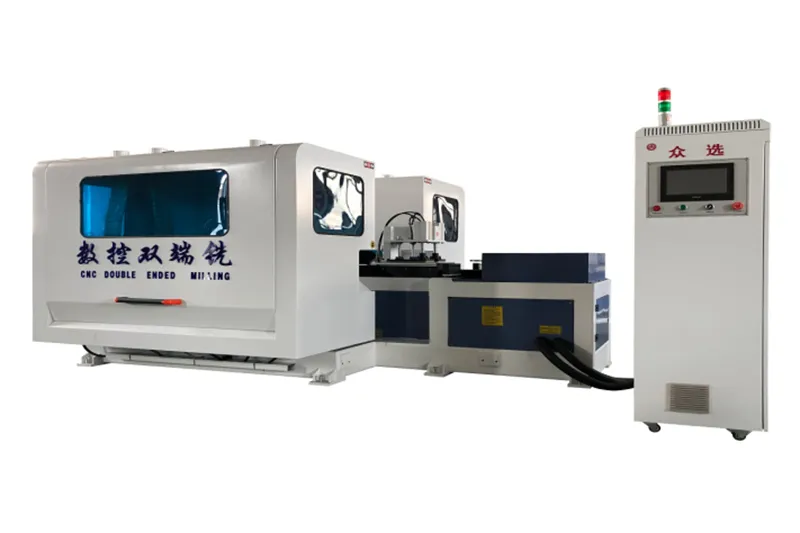

MXZ5170 CNC Double-End Milling and Drilling Machine (Single Rail + Front Drill)
- Working length: 400-800mm
- Spindle diameter: Ø35mm
- Spindle speed: 9000r/min
- Milling motor power: 5.5kW×4pcs
- Drilling motor power: 1.5kW×2pcs
- Saw blade motor power: 1.5kW×2pcs
- Machine weight: 3500kg
- Machine dimensions: 3300×2100×1700mm
Applications
- Precision cutting of door rails to specified lengths.
- Double-end and rear-side drilling for accurate hole placement.
- Double-end shaping of door frame components.
Advantages
- Adjustable working width to accommodate various door rail sizes.
- Simple operation, all processes completed sequentially with a single “Start” command.
- High precision machining with effective edge protection to prevent chipping.
- High efficiency, capable of processing 100 to 120 door rails per hour.

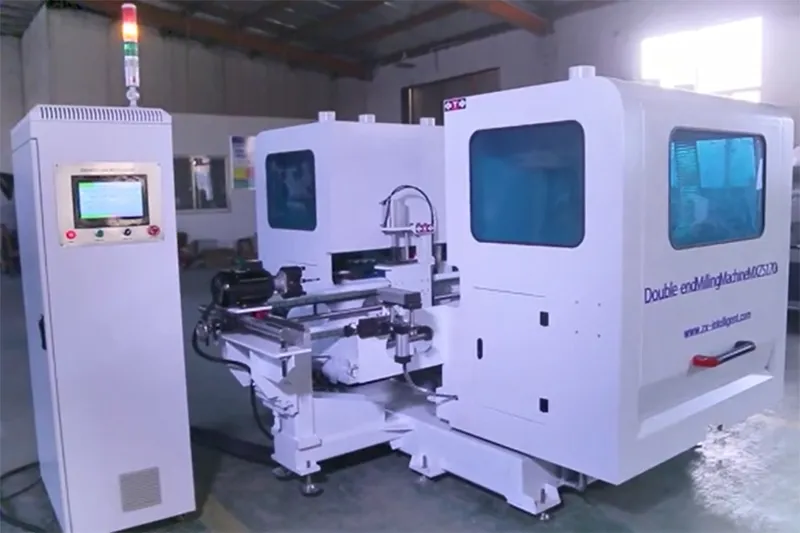

MXZ5170B CNC Double-End Milling and Drilling Machine (Double Rail + Front&Rear Drill)
- Working length: 340-920mm
- Spindle diameter: Ø40mm
- Spindle speed: 9000r/min
- Milling motor power: 5.5kW×4pcs
- Drilling motor power: 1.5kW×4pcs
- Saw blade motor power: 1.5kW×2pcs
- Machine weight: 3800kg
- Machine dimensions: 4400×2200×1700mm
Applications
- Precision length cutting of door rails.
- Drilling on both ends and both front and rear sides of door rails.
- Double-end shaping for consistent, accurate profiles.
Advantages
- Adjustable working width, with dual feeding rails to process wider timber sections.
- Simple operation, all functions executed with a single start command.
- High precision machining that prevents edge breakage.
- High productivity, capable of processing 90 to 100 door rails per hour.

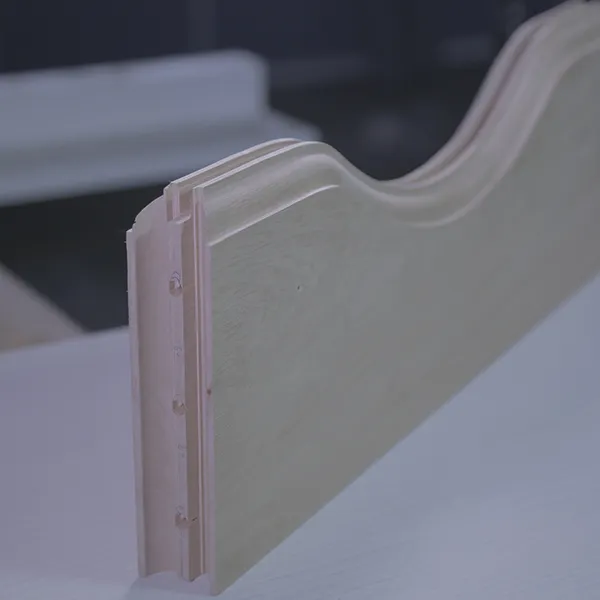

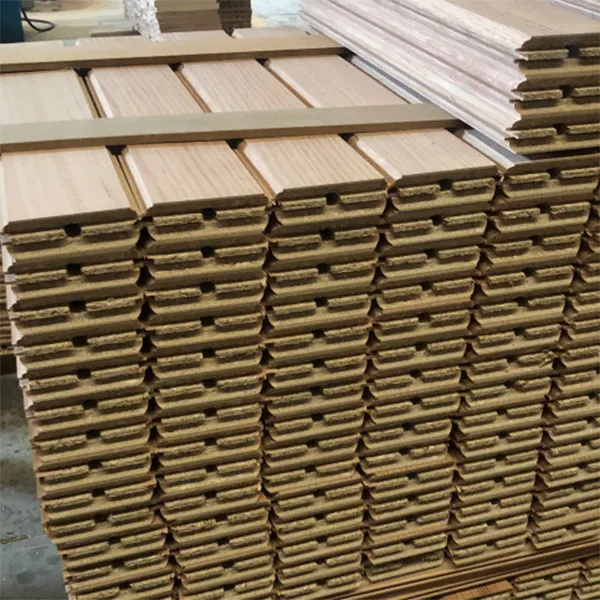

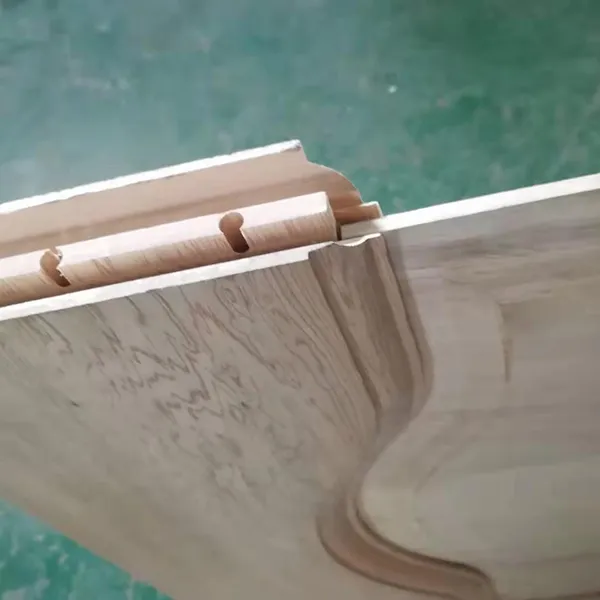

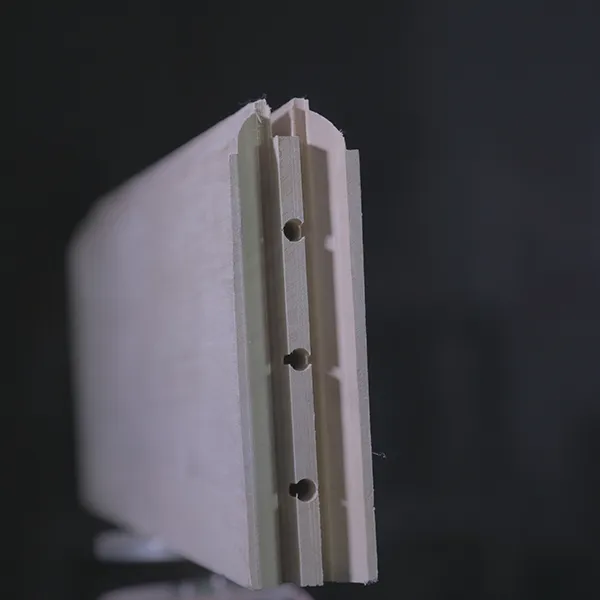

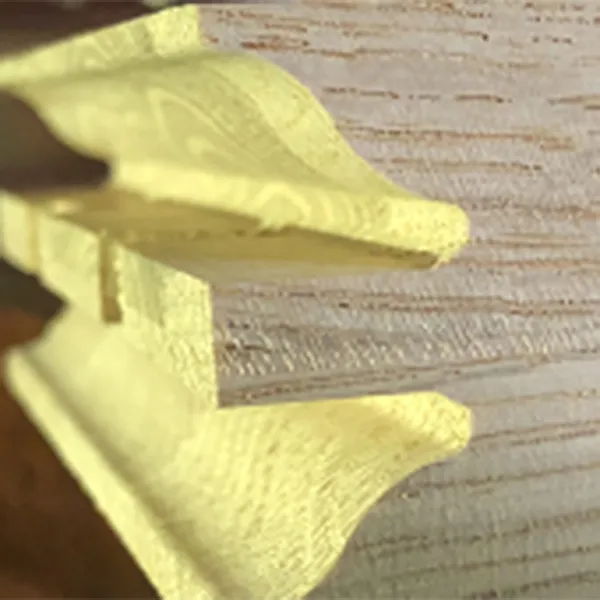

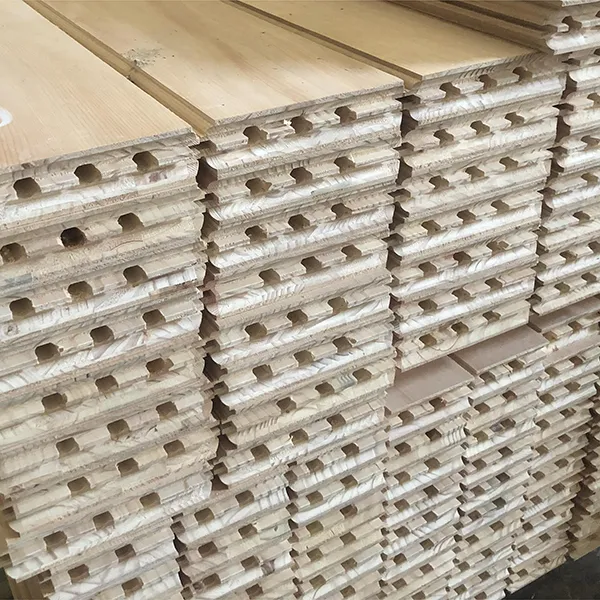

Sample Showcase
Machines Used in Solid Wood Door Production Line
