CNC Wall Panel Edge Slotting Machine (Double Side)

Wood processing machine for cutting slots on both edges of wood panel

CNC Wall Panel Edge Slotting Machine (Double Side)
  • CNC Wall Panel Edge Slotting Machine (Double Side)
  • CNC Wall Panel Edge Slotting Machine (Double Side)

    • //Woodworking Machinery

    CNC Wall Panel Edge Slotting Machine (Double Side)

    Wood processing machine for cutting slots on both edges of wood panel
    • Spindle motor power5.5kW×2pcs
    • Saw motor power1.1kW
    • Travel motor power2.2kW
    • Machine weight2500kg
    Request a Quote

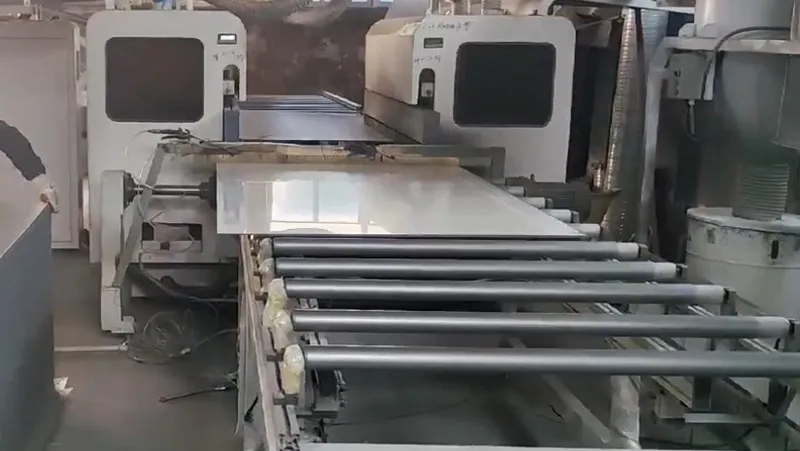

    CNC Double-Side Slotting Machine
  • CNC Double-Side Slotting Machine
  • CNC Double-Side Slotting Machine
  • CNC Double-Side Slotting Machine
  • CNC Double-Side Slotting Machine
  • CNC Double-Side Slotting Machine
    • CNC Double-Side Slotting Machine

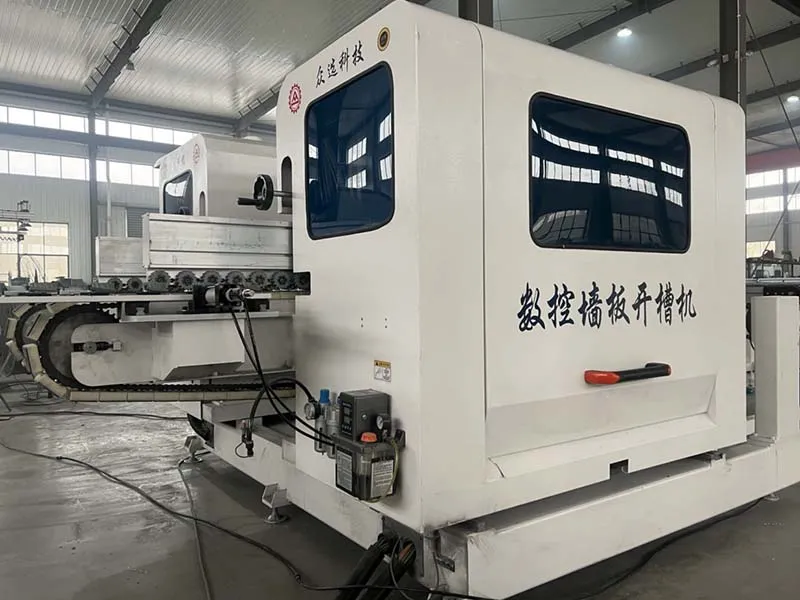

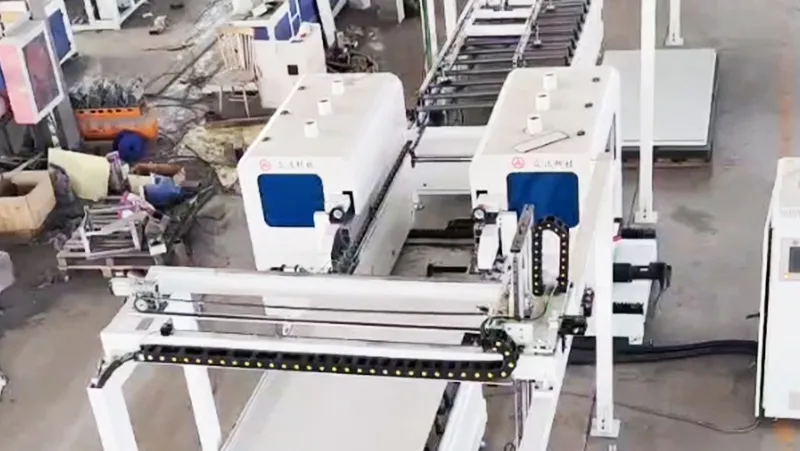

    CNC double-side edge slotting machines perform simultaneous precision slotting on both longitudinal edges of wall panels and composite boards in a single pass. Equipped with six axes and three tooling stations on each side, all driven by servo motors for synchronized high-precision operation, these systems deliver rapid and accurate slotting, making them ideal for industrial-scale panel processing.

    Application

    Perfect for slotting operations on a variety of materials, including:

    • Carbon crystal panels
    • Wood veneer panels
    • Stone-plastic composite (SPC) boards
    • Aluminum-plastic composite panels
    • Various multi-layer composite boards
    Request a Quote
    Specifications
    Model ZX5860 ZX5861
    Spindle motor power 5.5kW×2pcs 5.5kW×2pcs
    Saw motor power 1.1kW 1.1kW
    Cutter motor power 3.5kW×2pcs 2.2kW
    Servo motor power (fixed width) 1.5kW 1.5kW
    Servo motor power (cutter) 0.75kW×8pcs 0.75kW×8pcs
    Travel motor power 2.2kW 2.2kW
    Machine dimensions (L×W×H) 3500×2300×1800 3000×2300×2400
    Machine weight 2500kg 2500kg
    Features
    • The slotting machine frame is fully welded and undergoes a 24-hour heat treatment to eliminate internal stress, ensuring long-term structural stability without deformation. The motion system uses high-strength, widened dual linear guide rails, achieving linear accuracy within 0.03 mm. Additionally, the panel feeding system adopts a table-mounted chain block conveyor, significantly enhancing workpiece transport stability during machining.

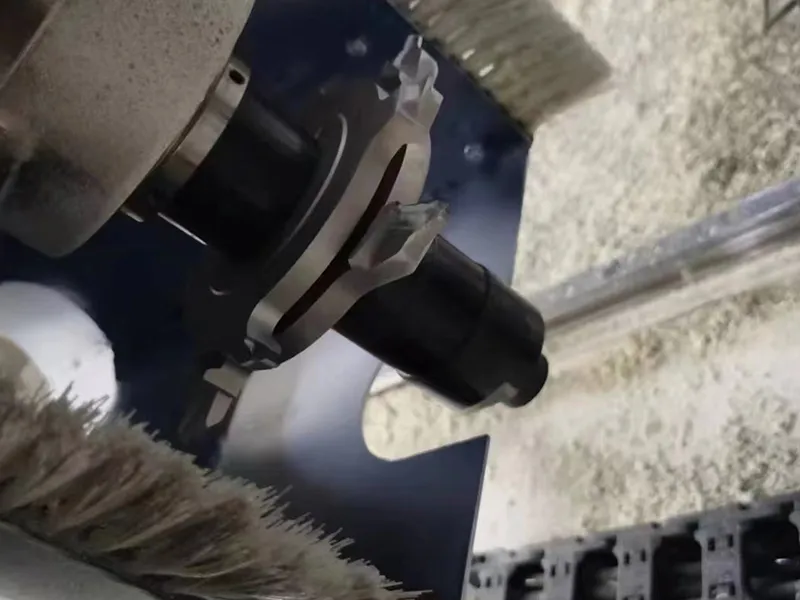

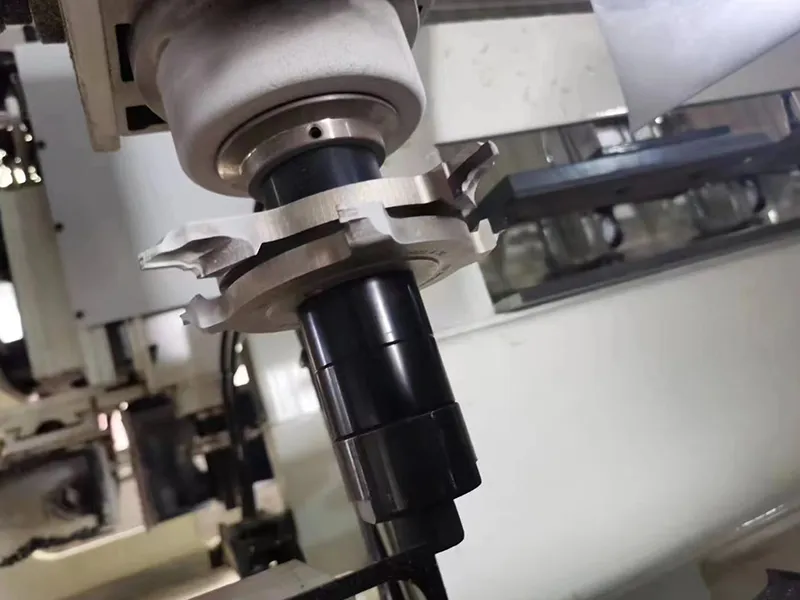

    • Equipped with servo-controlled width adjustment and automatic tool setting, the machine offers a fully integrated CNC operation, enabling straightforward and efficient use, often described as fool-proof operation that is user-friendly and easy to operate.

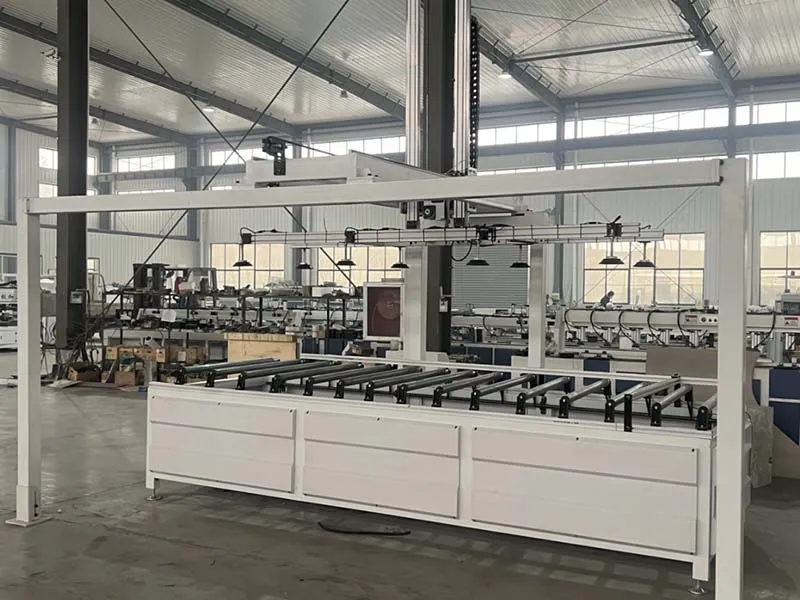

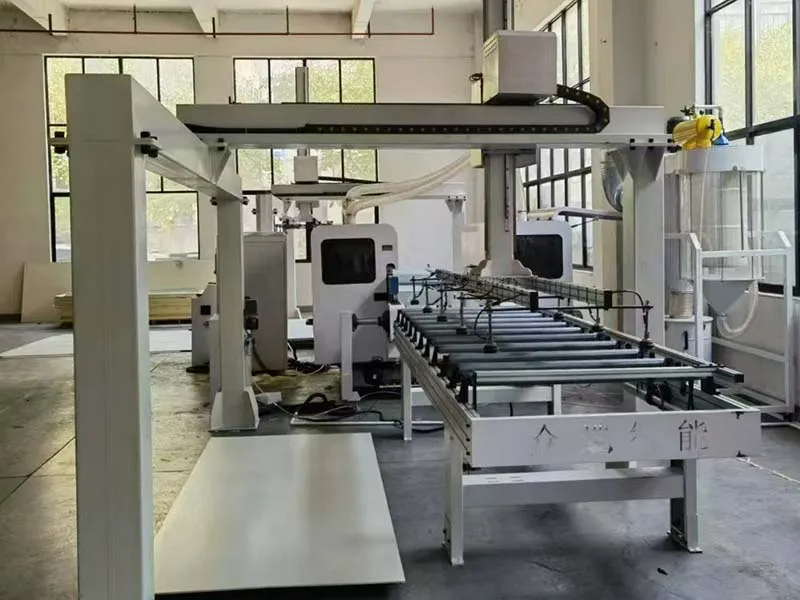

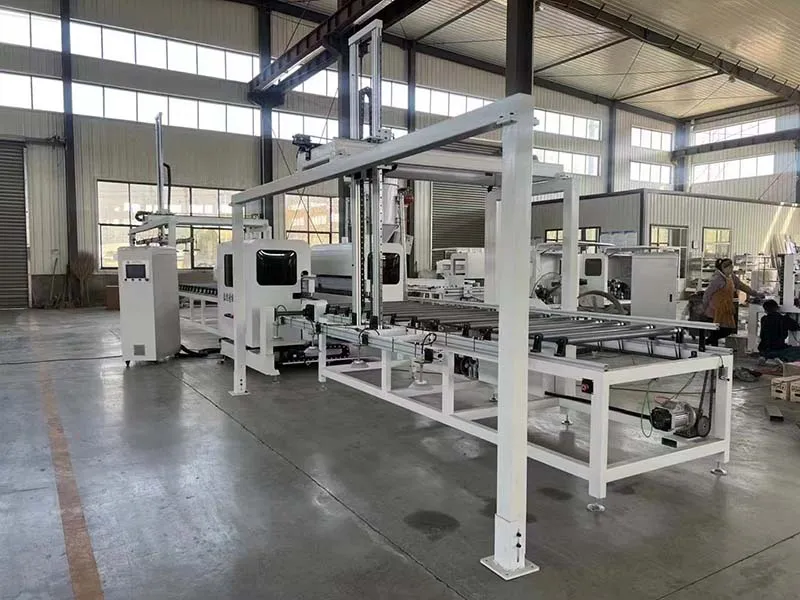

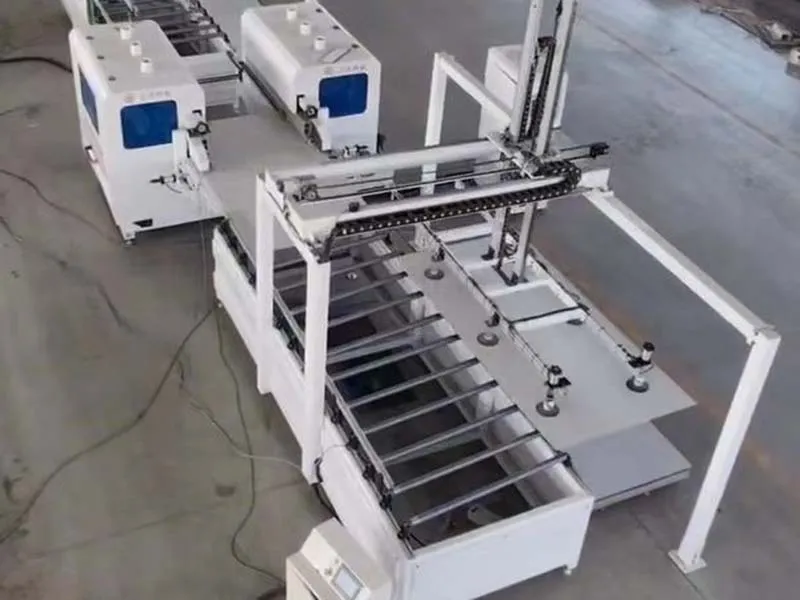

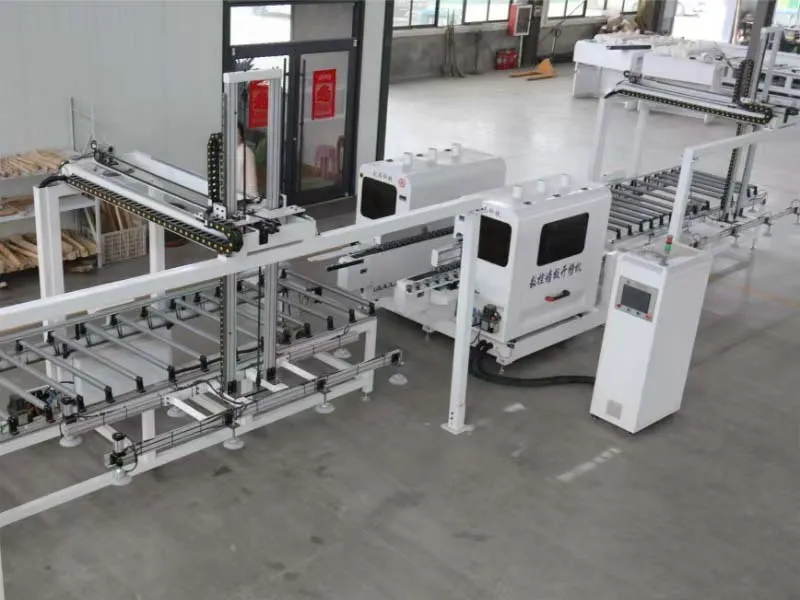

    Robotic Loading and Unloading System
  • CNC Double-Side Slotting Machine
  • CNC Double-Side Slotting Machine
  • CNC Double-Side Slotting Machine
    • Robotic Loading and Unloading System
    • Overall dimensions (L×W×H) 4400×2300×2500mm
    • Machine weight 1500 kg
    • Servo motor power 0.75 kW×2 (for linear transfer and gripping)
    • Variable frequency motor 1.1 kW×1 (for adjustable travel speed)
    • Travel speed 5–50 m/min (servo-controlled, adjustable via touchscreen interface)
    Function
    • Positioning & separation: Accurately aligns and separates each panel.
    • Steady transfer: Uniform, continuous forward movement of panels into the next machining phase.
    Request a Quote

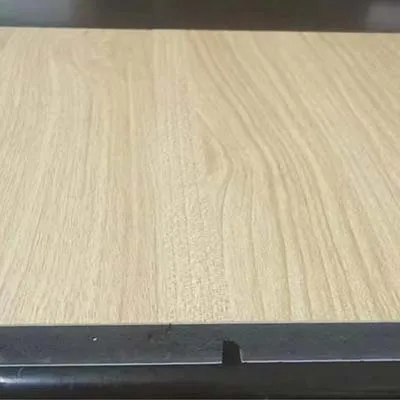

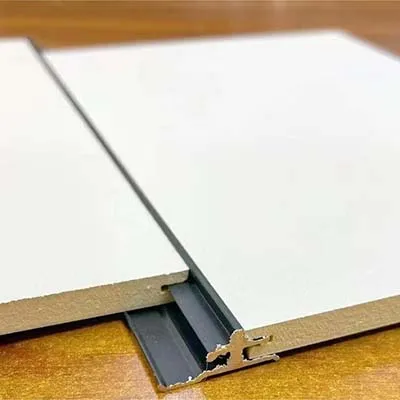

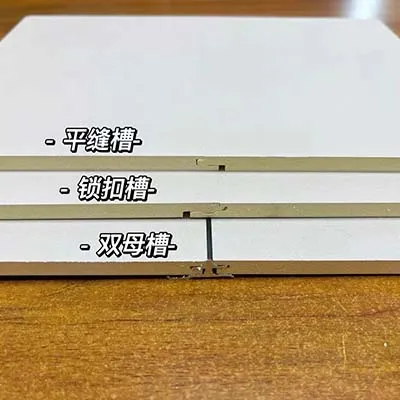

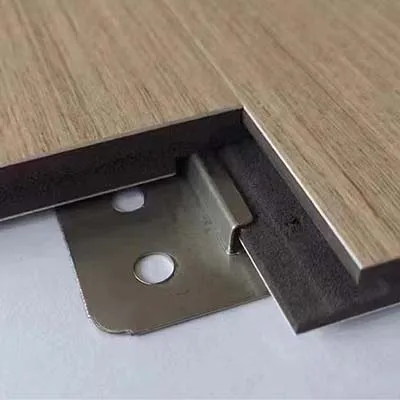

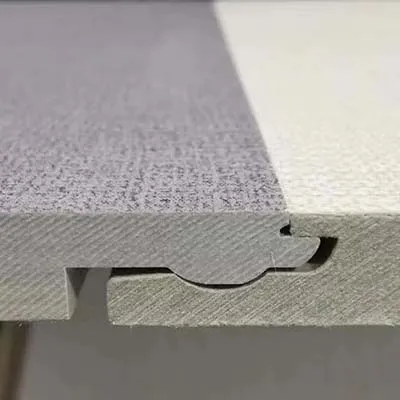

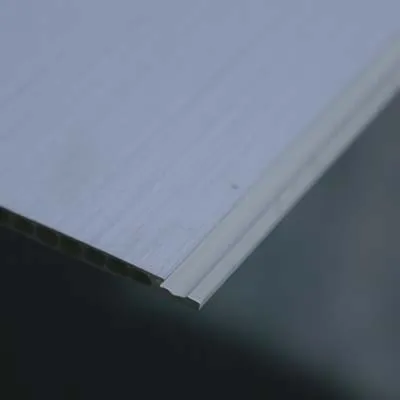

    Sample Showcase

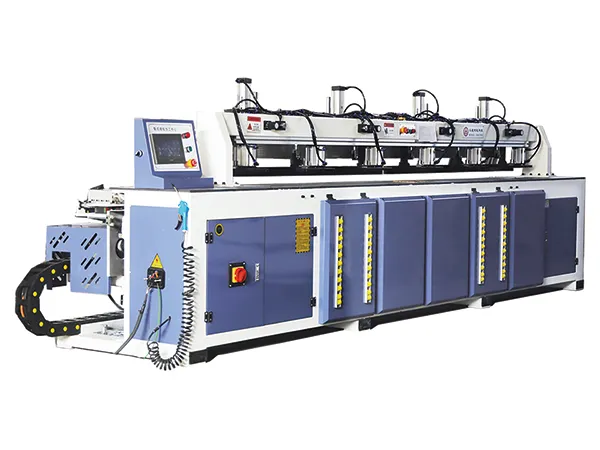

    • CNC Wall Panel Edge Slotting Machine (Single Side)
    • CNC Wall Panel Edge Slotting Machine (Single Side)
    • CNC Wall Panel Edge Slotting Machine (Single Side)
    • CNC Wall Panel Edge Slotting Machine (Single Side)
    • CNC Wall Panel Edge Slotting Machine (Single Side)
    • CNC Wall Panel Edge Slotting Machine (Single Side)
