    //Woodworking Machinery

    Automatic Double Table Mortising Machine

    Multi-head mortiser machine for slot mortising on multiple wood components
    • Max. working length1450mm
    • Max. working width160mm
    • Machine weight1400kg
    • Machine dimensions (L×W×H)3100×2200×2300mm

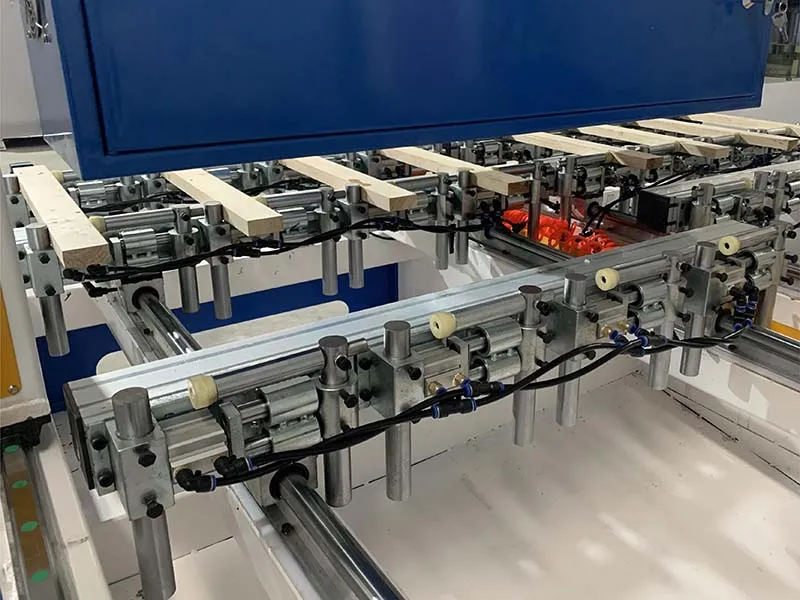

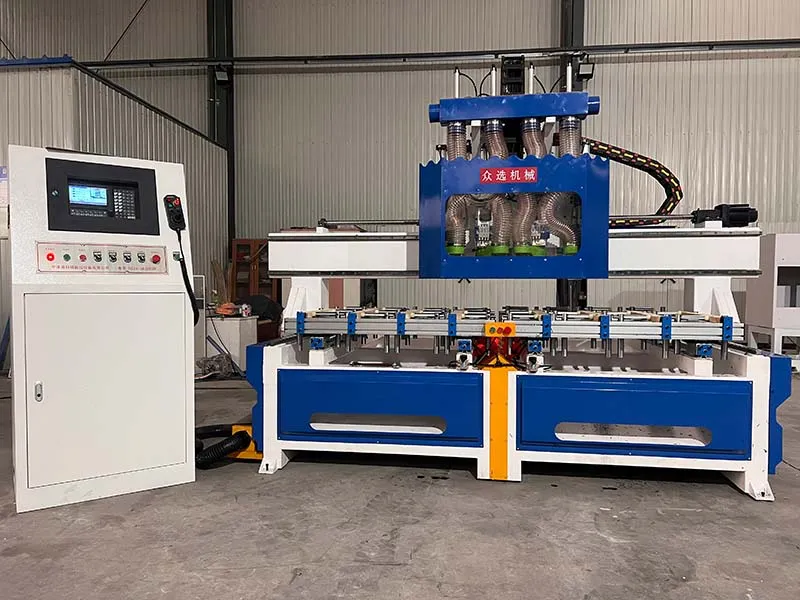

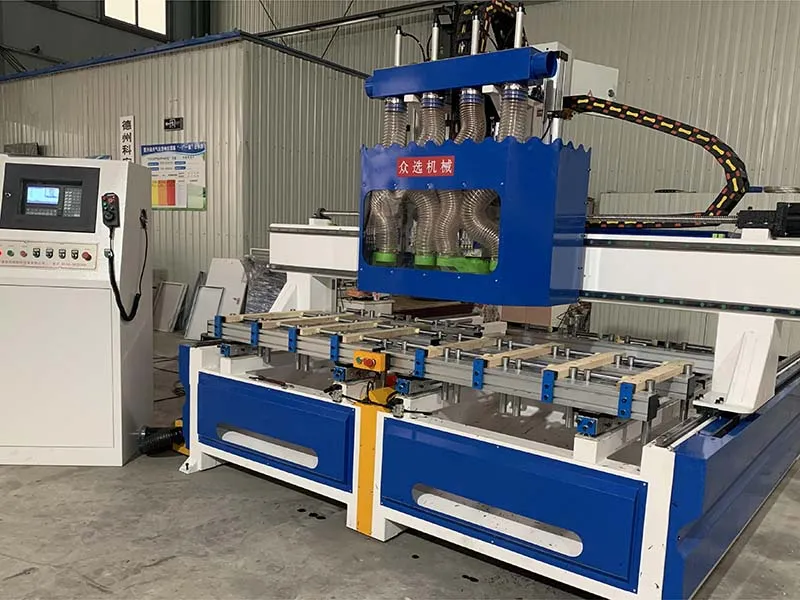

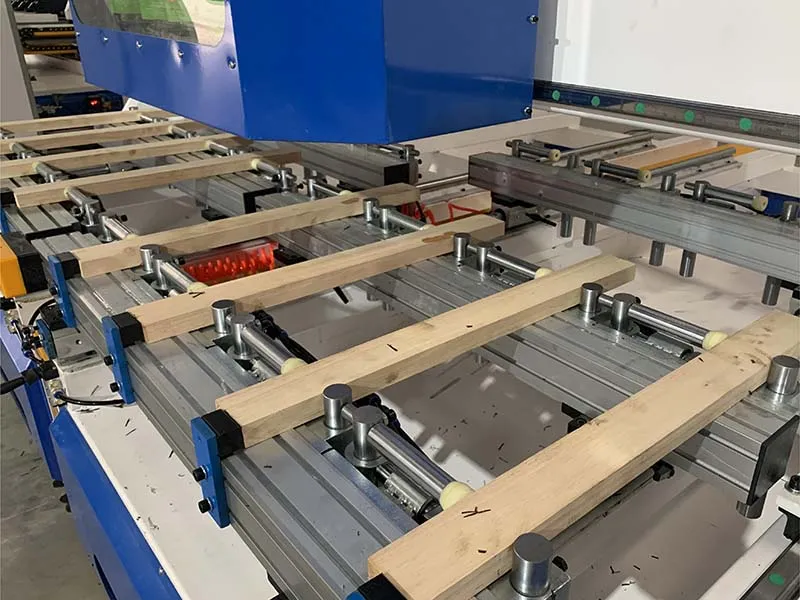

    The automatic double table mortising machine is mainly used for high-efficiency production of wood mortises. With dual worktables, it allows simultaneous machining and loading/unloading, minimizing downtime and improving overall workflow efficiency. It supports multiple-head configurations for processing several workpieces at once, making it ideal for mass production in furniture and frame manufacturing.

    Request a Quote
    Specifications
    • Max. working length1450mm
    • Max. working width160mm
    • Max. working height150mm
    • Dust suction inlet diameterØ98×4pcs
    • Air pressure0.4-0.9MPa
    • Cutter diameter5-30mm
    • Total power20.0kW
    • Spindle power4-6.0kW
    • Machine weight1400kg
    • Machine dimensions (L×W×H)3100×2200×2300mm
    Advantages
    • Working dimensions are adjustable to accommodate various sizes.
    • Dual worktables enable continuous, high-speed machining.
    • Mortising angle can be adjusted to match specific joint or design requirements.
    Applications

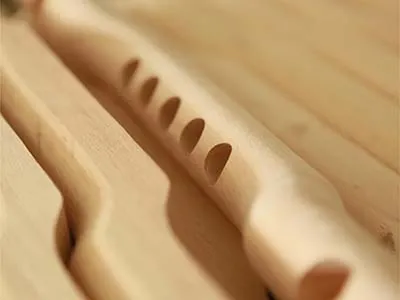

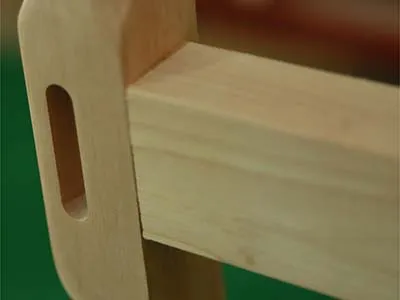

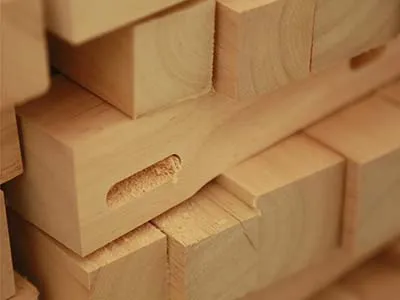

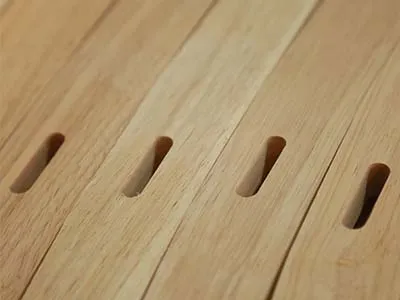

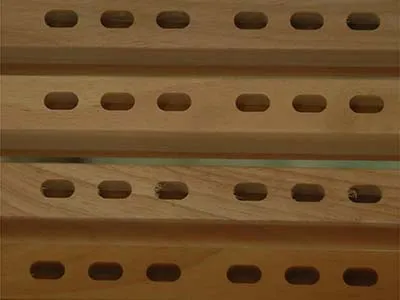

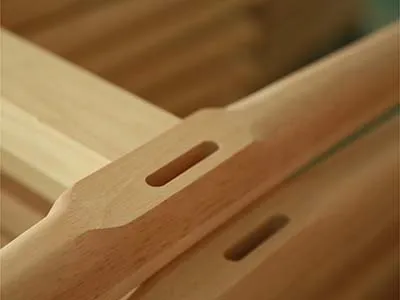

    Used for cutting wood mortises and slot-type holes in solid wood components, such as furniture frames, chair parts, and doors.
