//Woodworking Machinery

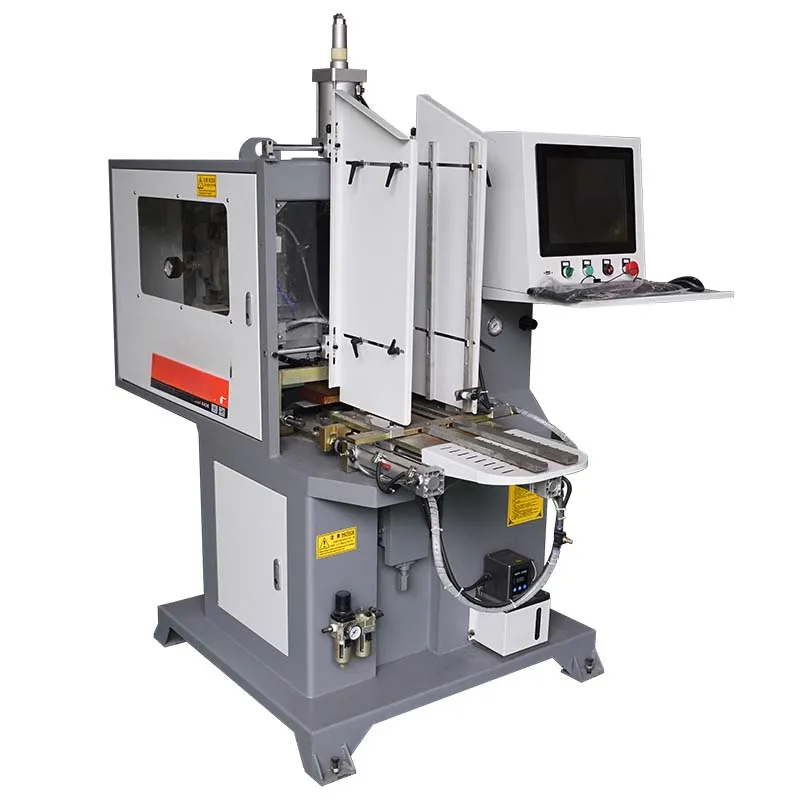

Rotary Copy Shaping Profile Milling Machine

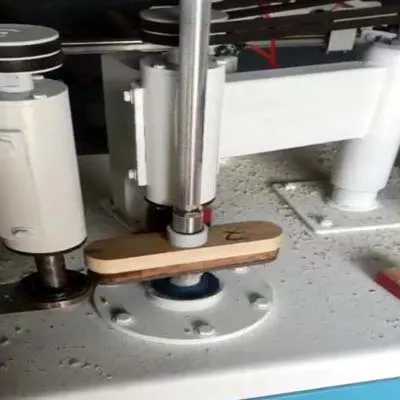

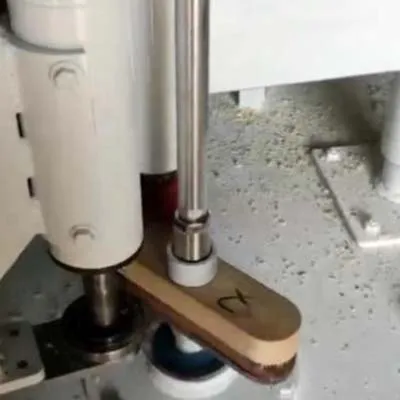

Automatic copy shaper for milling the external profile of small wood workpieces
- Working air pressure 0.6-0.8MPa
- Milling motor power 7.5/9.5kW
- Rotation motor power 1kW
- Rotation speed (frequency control) 1-6r/min
- Spindle speed 18000r/min
- Cutter shank diameter Ø12.7/20mm
- Working diameter range 30-300mm
- Working thickness range 60mm
- Dust suction inlet diameter Ø100mm×3pcs
- Work table size 300×450mm
- Max. rectangle L/W ratio 10:1
- Total power 10.5kW
- Machine weight 750kg
- Machine dimensions 1300×1850×2000mm
