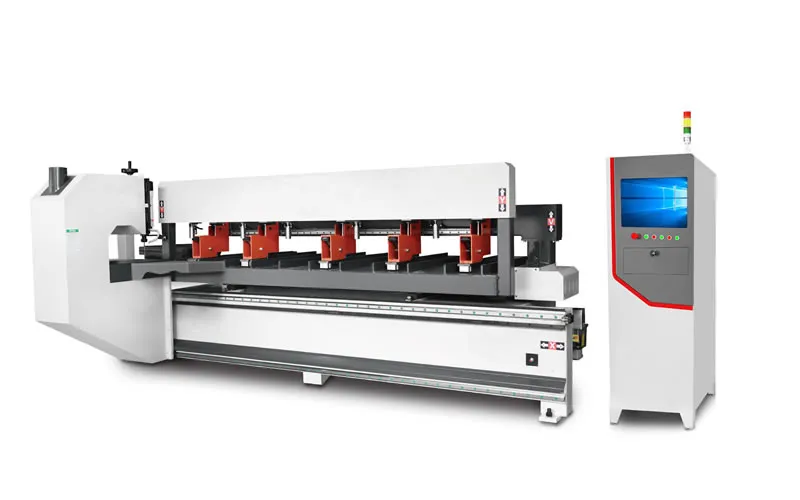

High Precision CNC Wood Cutting Machine

Multi-head CNC wood cutter for cutting, drilling and engraving of complex wood furniture components

High Precision CNC Wood Cutting Machine
Woodworking Machinery

//Woodworking Machinery

CNC Wood Cutting Machine

CNC wood mill cutter for shaping components of chairs, tables, doors and other furniture

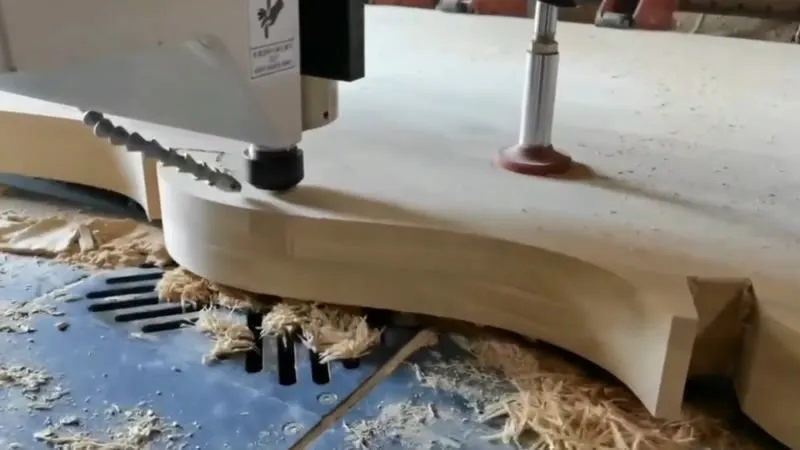

Our CNC wood cutting machine uses computer control and high-precision transmission components to achieve accurate positioning and clean, consistent cuts. It handles straight lines, curves, and complex contours with smooth edges and minimal dimensional error. This woodworking equipment is suitable for panel furniture manufacturing and related applications, it supports multiple operations including cutting, drilling, grooving, and engraving in a single process.

Request a Quote

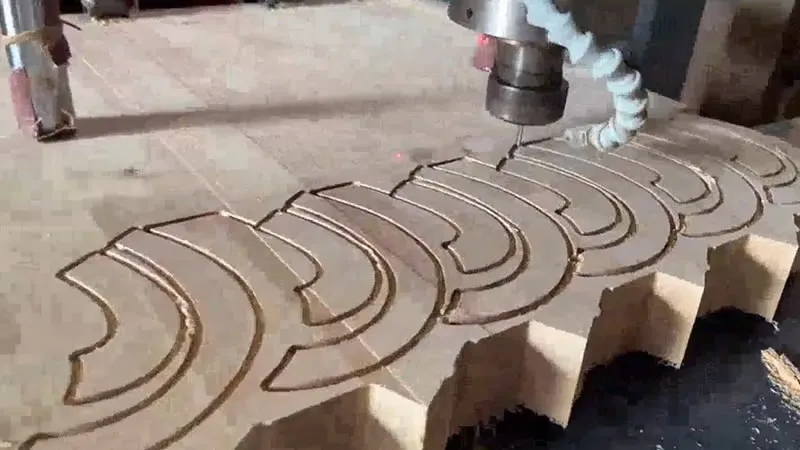

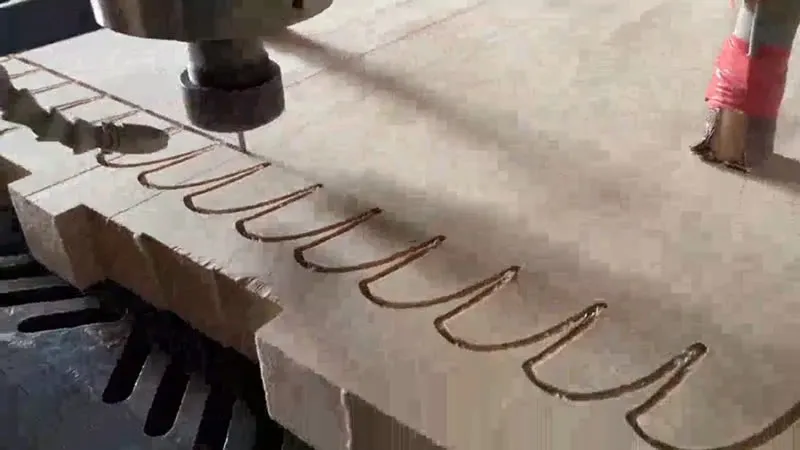

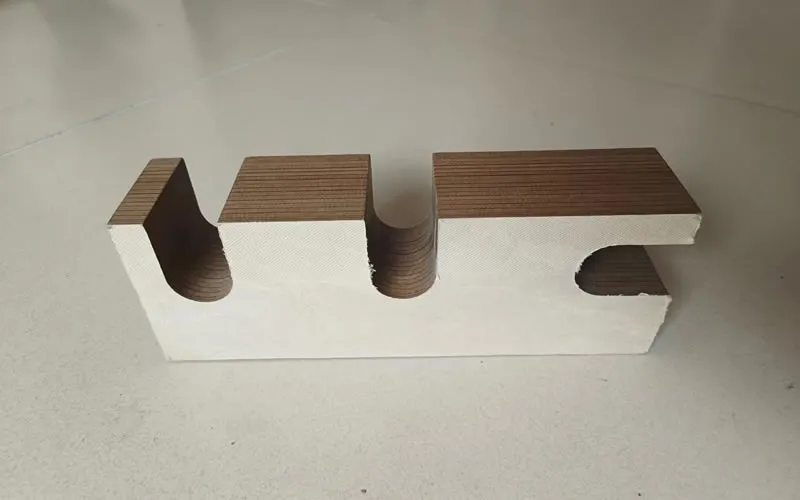

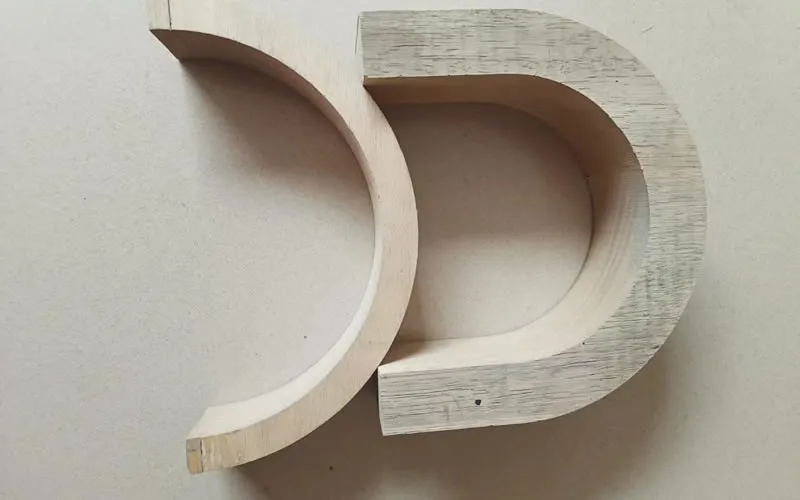

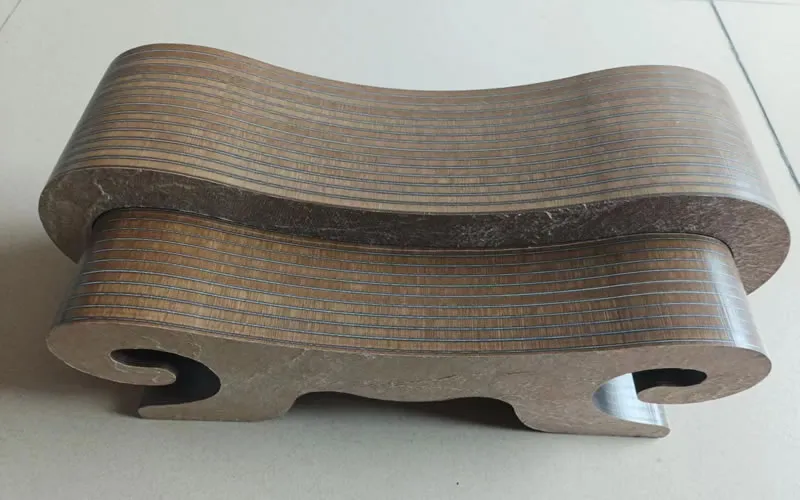

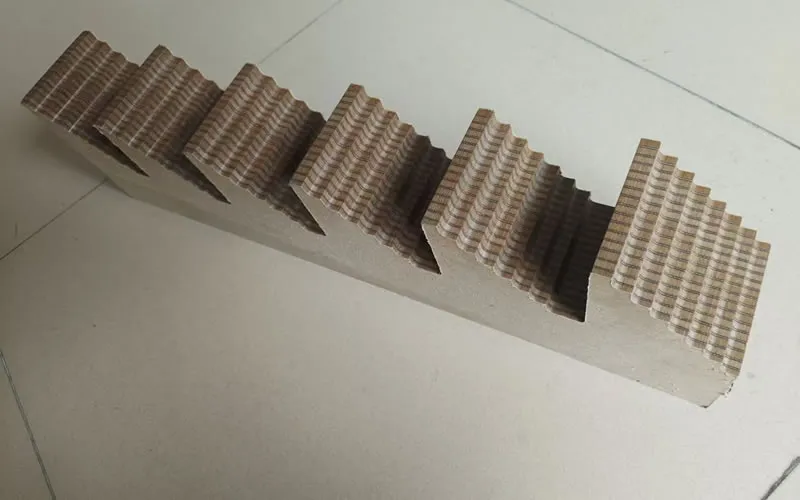

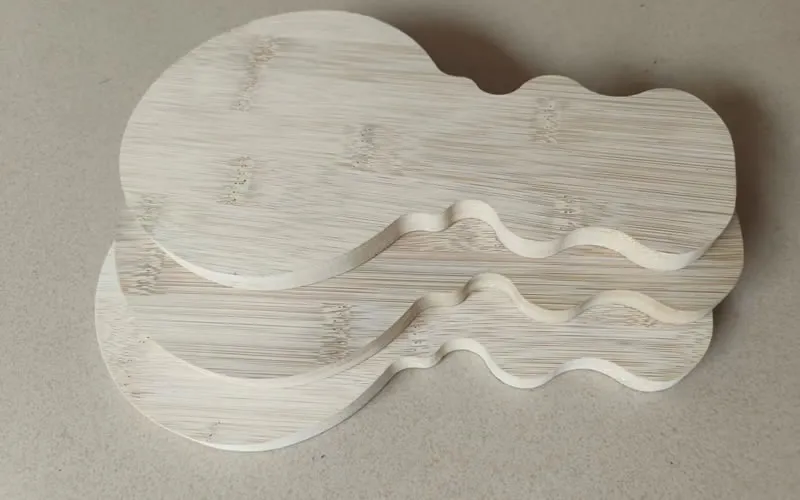

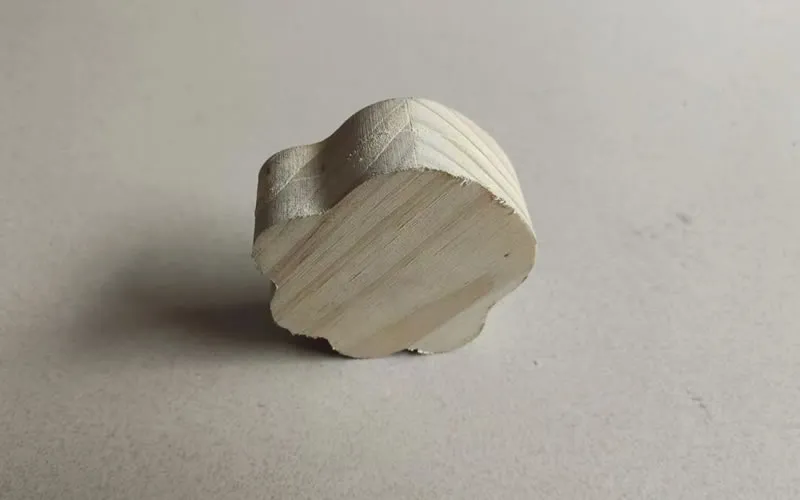

Sample Showcase
  • High Precision CNC Wood Cutting Machine
  • High Precision CNC Wood Cutting Machine
  • High Precision CNC Wood Cutting Machine
  • High Precision CNC Wood Cutting Machine
  • High Precision CNC Wood Cutting Machine
  • High Precision CNC Wood Cutting Machine
Four Table 5 Axis CNC Machining Center
  • High Precision CNC Wood Cutting Machine
  • High Precision CNC Wood Cutting Machine
  • High Precision CNC Wood Cutting Machine
    • Configurations
    System Custom System
    Guide rail ROUST Germany
    Ball screw Taiwan HIWIN
    Servo drive system Inovance (full set)
    Electrical components Schneider Electric
    Inverter Folinn
    Spindle motor Shenyi Motor (upper and lower spindle)
    Machine body Welded steel structure with heat treated
    Computer Industrial integrated computer
    Specifications
    Model 1500A 2500A
    Machine dimensions (L×W×H) 2300×2800×1600mm 3400×2800×1600mm
    Machine weight 2000kg 3000kg
    Max. working diameter 500mm 500mm
    Max. material length 1500mm 2500mm
    Max. material width 1300mm 1300mm
    Max. material thickness 130mm 130mm
    Idle speed 0-15m/min 0-15m/min
    Working speed 0-12m/min 0-12m/min
    Total power 20kW 20kW
    Spindle power 12.7kW 12.7kW
    Spindle speed 10000rpm-18000rpm 10000rpm-18000rpm
    Working voltage 380V 380V
    Working air pressure 0.6Mpa 0.6Mpa
    Features:
    • Our CNC wood cutting machine is equipped with a high-output spindle that delivers stable cutting performance and a long service life, ensuring reliable operation across a variety of applications.
    • Large-torque servo motors reduce noise, improve movement speed, and maintain precise positioning for consistent results.
    • A robust rack-and-pinion drive system combined with German ROUST square linear guides provides smooth motion and high transmission accuracy, even during continuous, high-load production.
    Features
