    //Woodworking Machinery

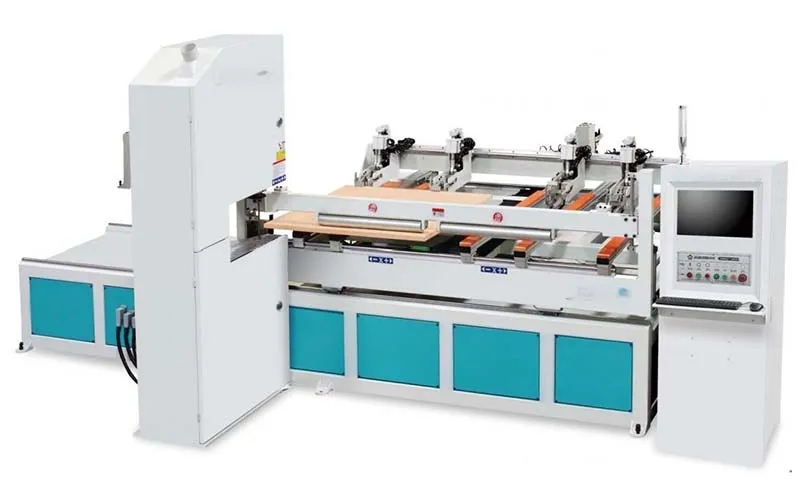

    CNC Band Saw

    Wood sawing machine for cutting solid wood into desired shapes and sizes
    • Max. workpiece size (L×W)1220×1220mm
    • Max. working thickness250mm
    • Machine weight2700kg
    • Overall dimensions2000×1400×2300mm

    CNC band saw is a high-efficiency sawing machine equipped with an advanced numerical control system, specifically designed for cutting solid wood into required shapes and sizes. Compared to manual sawing, it offers significantly faster cutting speeds and greater accuracy, making it ideal for large-scale wood processing. With its ability to handle high volumes in a short time while minimizing material waste, this machine is well-suited for mass production environments that demand both speed and precision.

    Request a Quote
    Features
    • It delivers high processing efficiency with clean surface finishes and eliminates the need for cross-cutting.
    • The band saw conserves wood material, supports a wide processing range, allows automatic programming, and separates human operation from cutting zones to reduce the risk of workplace injury, making it ideal for wood furniture manufacturers.
    • It uses a non-rotating saw blade system capable of 90° rotation, with blade widths ranging from 10mm to 20mm, the well-engineered structure reduces breakage and extends blade life.
    • Compact in footprint but broad in application, it provides high output in limited workshop space.
    • The wide infeed table improves workflow and cutting speed, while powerful pneumatic clamps offer reliable and wide-range fixation for synchronized multi-layer sawing.
    • The precision of the saw frame is enhanced by a dedicated clamping mechanism.
    • Its advanced CNC control system, equipped with integrated CAD software and automatic unloading, simplifies operation, minimizes wood waste, and is easy for operators to learn.

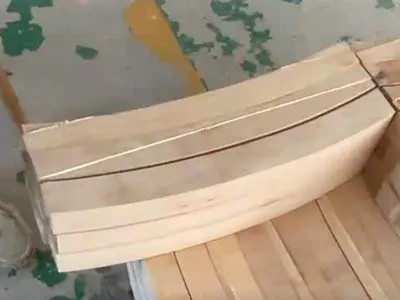

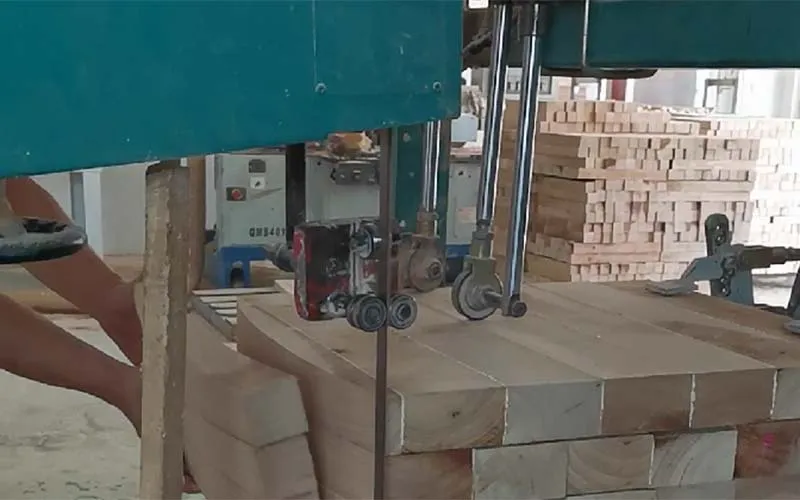

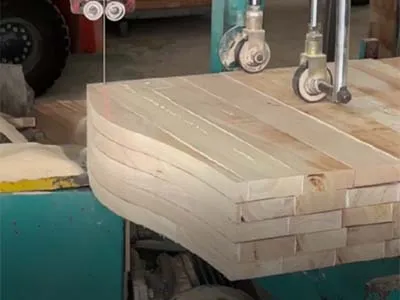

    Sample Showcase
    • CNC Band Saw
    • CNC Band Saw
    Specifications
    Mode CNC1212 CNC1225
    Max. workpiece size (L×W) 1220×1220mm 1220×2500mm
    Max. working thickness 250mm 250mm
    Saw wheel diameter 600mm 600mm
    Min. cutting radius R80 or R95mm R80 or R95mm
    Cutting depth 760mm 760mm
    Cutting angle ±90° ±90°
    X-axis motor 15N·m 15N·m
    Y-axis motor 10N·m 10N·m
    Z-axis motor 6N·m 6N·m
    Spindle motor 4kW 4kW
    Max. X-axis speed 40m/min 40m/min
    Max. Y-axis speed 40m/min 40m/min
    Max. Z-axis speed 180°/sec 180°/sec
    Working speed 1-25m/min 1-25m/min
    Return speed 6-40m/min 6-40m/min
    Air pressure 0.6-0.8MPa 0.6-0.8MPa
    Dust outlet diameter Ø100 Ø100
    Machine weight 2700kg 3000kg
    Overall dimensions 2000×1400×2300mm 2000×1400×2300mm
