    //Woodworking Machinery

    3D Carving Machine

    Multi-head wood carving machine for milling and cutting wood furniture parts, balusters, statues or other crafts
    • Machining size1200×210×210mm
    • Spindle diameter85mm
    • Spindle speed6000-24000rpm/min
    • Power supplyAC 220V/50HZ

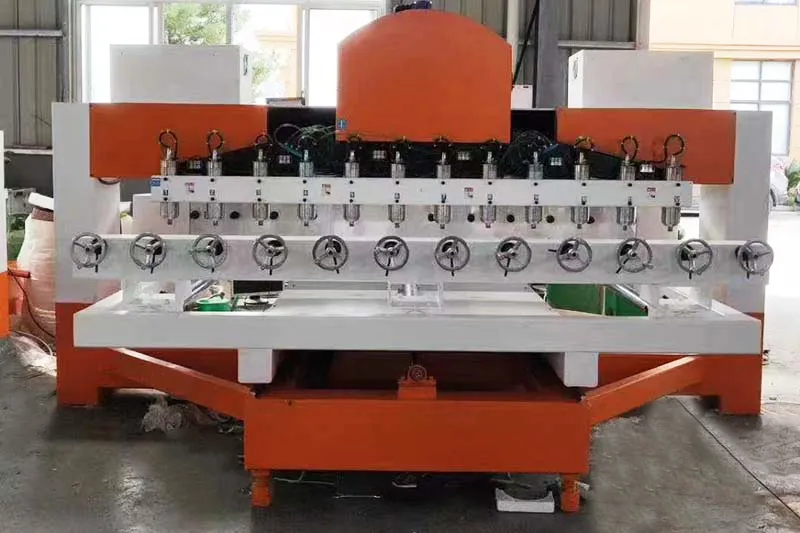

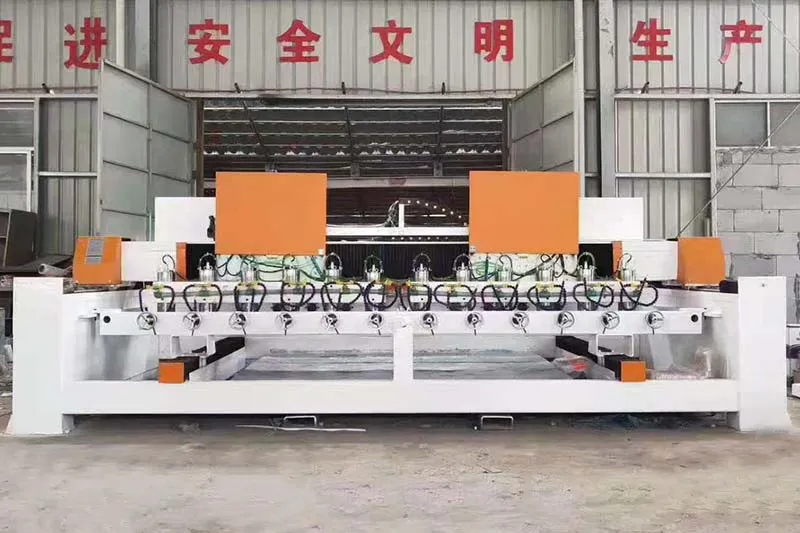

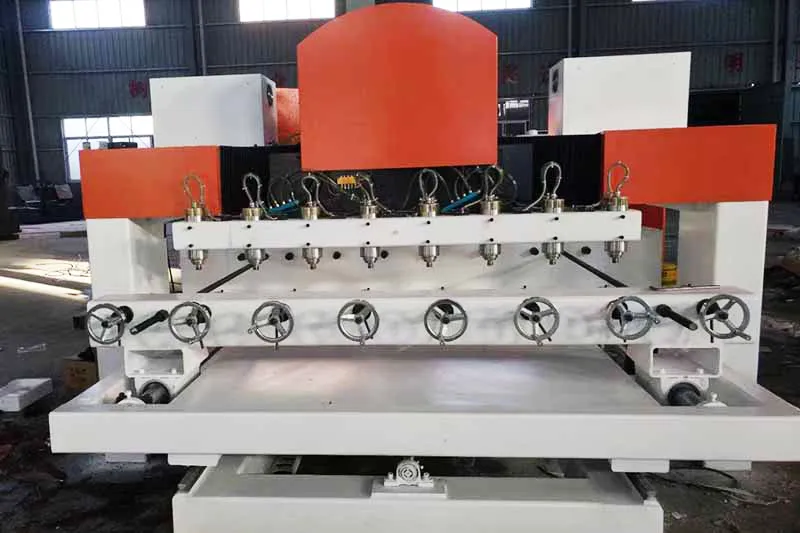

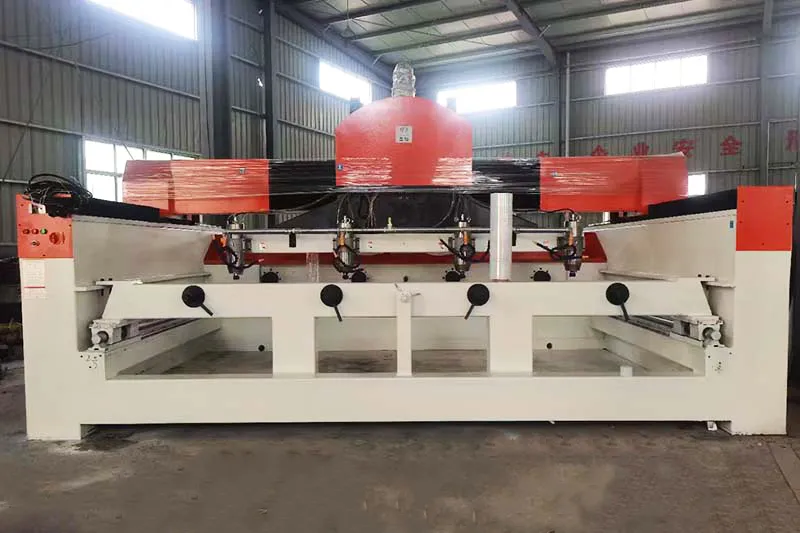

    This 3D carving machine is built for high-speed, high-precision carving of wood crafts, antique-style furniture, European-style components, balusters, and decorative sculptures. Equipped with multiple spindles, the machine can simultaneously process multiple workpieces using the same design, dramatically increasing output compared to traditional single-head systems. It delivers finely detailed carvings with minimal deviation from design files, enabling the accurate reproduction of complex contours and intricate reliefs. (Note: This woodworking machine is similar in functionality to the rotary carving machine, with the primary difference being a larger working area and support for taller components.)

    Request a Quote
    Specifications
    • Model MG-12025-8
    • Machining size 1200×210×210mm
    • Spindle power (8 heads) 2.2kW/pc
    • Spindle diameter 85mm
    • Spindle speed 6000-24000rpm/min
    • Frequency converter 5.5kW×4pcs
    • X-axis servo motor torque 6N.m
    • Y-axis servo motor torque 6N.m
    • Z-axis servo motor torque 7.7N.m
    • A-axis servo motor torque 10N.m
    • Command format Fully compatibility with HPGL 2D/3D, ENG-format, G-code
    • Memory capacity Not limited (similar to PC memory)
    • Interface Standard PCI port
    • Power supply AC 220V/50HZ
    • Frequency converter 3.7kW
    Sample Showcase
    • 3D Carving Machine
    • 3D Carving Machine
    • 3D Carving Machine
    • 3D Carving Machine
    Features
    • High speed, high efficiency: Reaches cutting speeds up to 18 m/min, enabling the productivity of 3-4 conventional machines.
    • Long-lasting linear guide rails: Equipped with industrial linear guide systems that offer 2,200x the service life and 10x the precision of traditional round guide rods.
    • Exceptional accuracy: Capable of engraving characters as small as 1 mm, supported by advanced motion control.
    • Robust steel frame: Heavy-duty structure supports high-speed operation and allows cutting of materials like 8 mm copper plate; modular design enables transport and installation flexibility.
    • Large working width: Cutting width exceeds 1.5 meters, greater than many machines in its class.
    • Extended z-axis travel: Vertical travel height up to 210 mm, suitable for machining tall, irregular, or third-party semi-finished parts.
    Features
