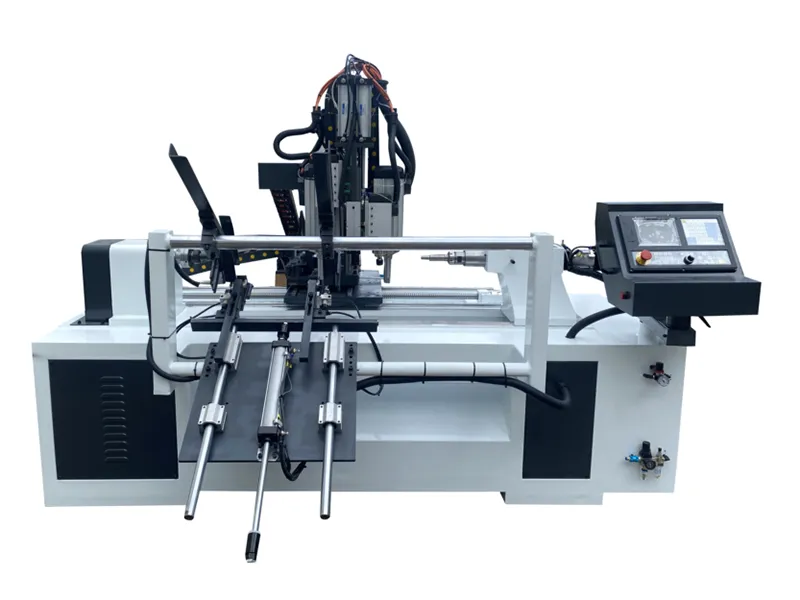

4 Axis CNC Wood Lathe

CNC machining center with 4 interpolated axes for turning, milling, drilling, mortising and sanding of solid wood elements
  • Max. working length1000mm
  • Max. working diameter120mm
  • Machine dimensions3100×1800×1850mm
  • Machine weight3300kg

Our 4-axis CNC wood lathes are designed to handle turning, milling, drilling, mortising, and sanding of solid wood components with precision and efficiency. With three linear axes (X, Y, Z) and one rotary axis working in perfect synchronization, they allow for accurate and smooth shaping of complex surfaces and detailed contours. These woodworking machines make it easy to produce intricate curved profiles and high-quality finished parts, offering the flexibility needed to meet the demands of diverse wood processing applications.

Request a Quote

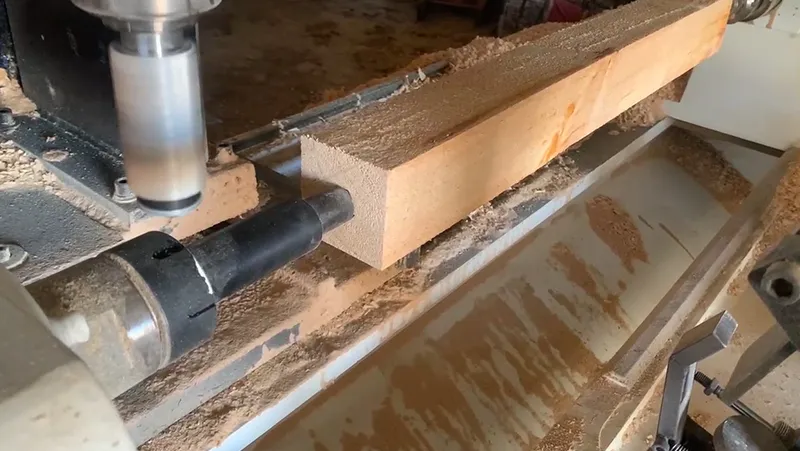

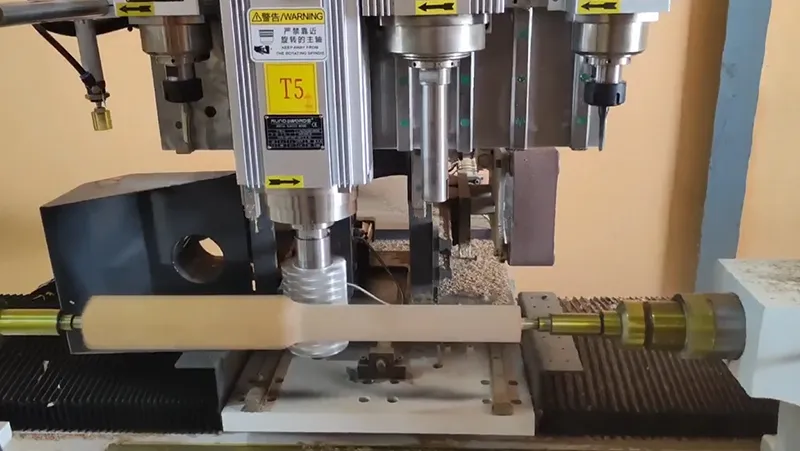

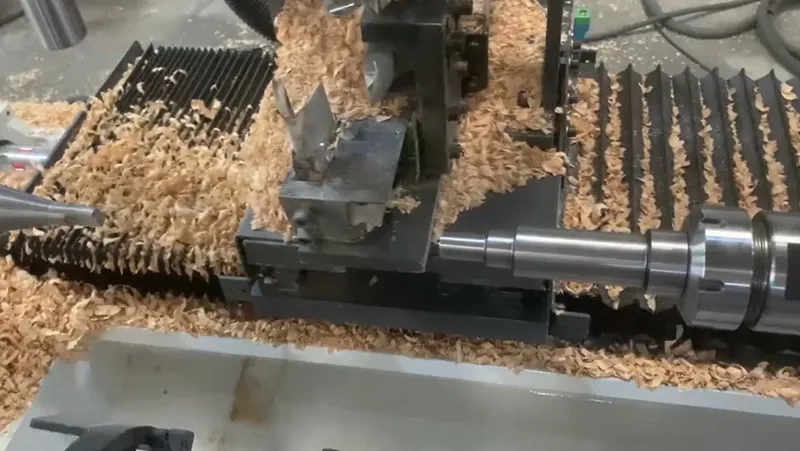

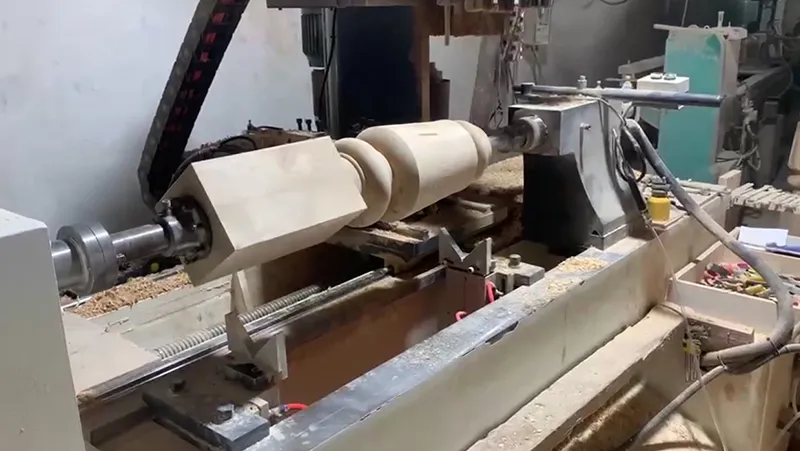

4 Axis CNC Wood Lathe
  • 4 Axis CNC Wood Lathe
  • 4 Axis CNC Wood Lathe
  • 4 Axis CNC Wood Lathe
  • 4 Axis CNC Wood Lathe
    • Applications

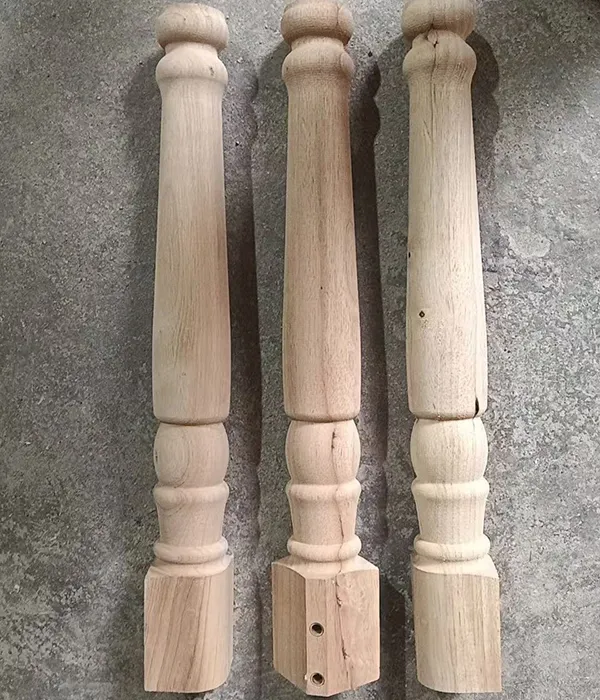

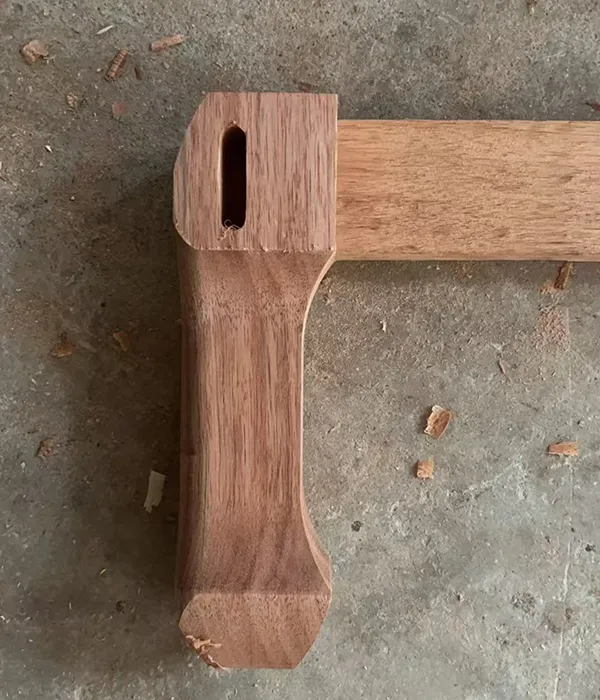

    Our 4-axis CNC wood lathes handle milling, drilling, slotting, and sanding for solid wood components in furniture production. Perfect for processing chair legs, chair backs, and armrests, they deliver precise shaping and smooth finishes to meet the needs of high-quality woodworking.

    • 4 Axis CNC Wood Lathe
    • 4 Axis CNC Wood Lathe
    Specifications
    Parts Brand Type Power
    Control system NEWKer CNC990TDB 100W
    X-axis ball screw TBI Motion 2510
    Z-axis ball screw TBI Motion 3210
    Y-axis ball screw TBI Motion 2510
    X-axis servo motor Haide servo 110 servo motor 1.2kW×4pcs
    Z-axis servo motor Haide servo 110 servo motor 1.2kW×6pcs
    Y-axis servo motor Haide servo 110 servo motor 1.2kW×6pcs
    X-axis guide rail Dinghan 25 guide rail
    Z-axis guide rail Dinghan 25 guide rail
    Y-axis guide rail Dinghan 25 guide rail
    Index spindle power Jitaike 4kW
    Index spindle drive Jitaike 4kW
    T3 shaping Tianyi 12000rpm 7.5kW
    T4 drilling Tianyi 18000rpm 6kW
    T5 mortising Tianyi 18000rpm 6kW
    T6 milling (reversal) Tianyi 12000rpm 7.5kW
    Max. working length 1000mm
    Max. working diameter 120mm
    Machine dimensions 3100×1800×1850mm
    Machine weight 3300kg
    Features
    • Equipped with a standard CNC control system supporting G-code, ensuring compatibility and ease of programming for diverse wood processing applications.
    • The spindle box and tailstock are crafted from integrated castings made with resin sand, and undergo high-temperature annealing after casting to enhance stability. This design ensures long-term durability, high rigidity, and minimizes deformation over time. Each lathe weighs approximately 2.4 tons, contributing to its structural stability.
    • The X, Z, Y, and A axes are driven by servo motors that precisely execute system commands. This setup guarantees dimensional accuracy, fast processing speeds, and achieves rapid traverse speeds of up to 20 meters per minute. The lathe includes an automatic overload alarm to protect against potential issues.
    • All sliding blocks are equipped with flanged designs to reduce tool vibration, especially when processing high-volume workpieces. This results in smoother surfaces and minimizes tool marks, making post-processing and sanding much easier.
    • The spindle features stepless automatic speed adjustment, with programming control for spindle speed and an integrated braking system. The brake system can stop the spindle in just 1.2 seconds, adding to operational efficiency and safety.
